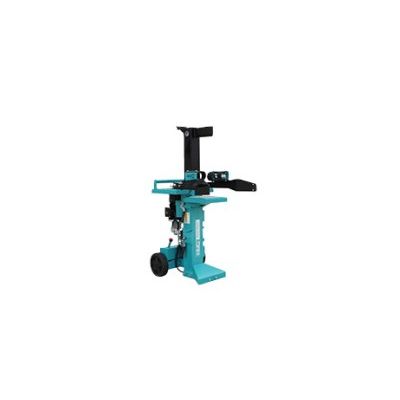

HMG-Hess - Model 7t 58/110cm - Hydraulic Wood Splitters
Hydraulic log splitter with 7t splitting power for length to 58cm or 110cm. Series HSP 7, entry-level model in wood splitter technology from HMG – Solid performance with 7t splitting power, built according to the new standard EN 609-1 – not only excellent design and handling, but above all construction of selected quality components – Series HSP 7K for wood lengths up to 58cm – Series HSP 7F for short and meter wood up to 110 cm length, standard with special gap blade and turntable for meter wood – conversion kit from short to meter wood splitter can also be retrofitted later.
Most popular related searches
wood splitter
hydraulic log splitter
short wood
log splitter
tractor hydraulic
hydraulic logging
tractor
tractor equipment
log splitting
- Forward Speed 7 km / sec
- return speed 28 cm / sec
- Power demand Tractor 6 kw
- Dimensions (WxHxD) 650x1560x930 mm Lifting retracted 1050 mm
- Robust and solid construction
- Standard with driving means
- Long splitting blade made of special steel
- Clean filtration through return filter
- Fast oil filter change
- Special arrangement of the suction pipe in the oil tank, for better oil circulation
- oil drain valve for rapid hydraulic oil change
- bell housing with rubber coupling between electric motor and hydraulic pump
- Switch-plug combination with phase inverter and motor protection
- special sliding guides between mast and frame
- variable stroke limiter for log length adjustment
- Two-hand control with sliding mechanism
- Large opening of the two-hand control
- Two-hand operation with flexible rubber wood holders to avoid entanglements with very knotty wood
- Additional drive system (for example PTO) retrofittable

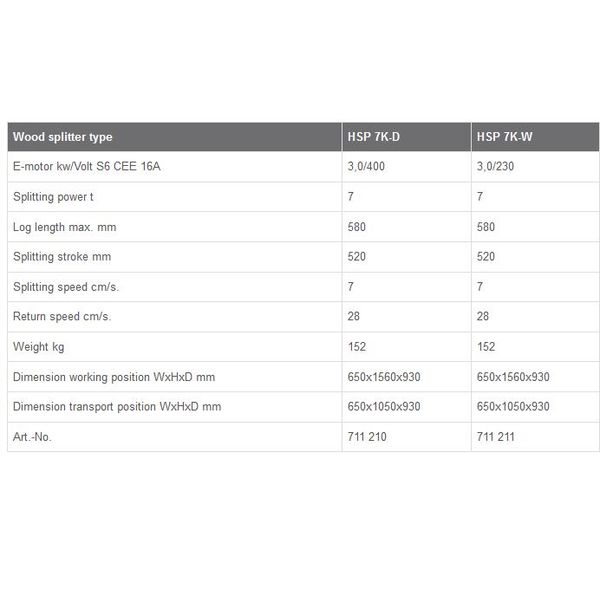

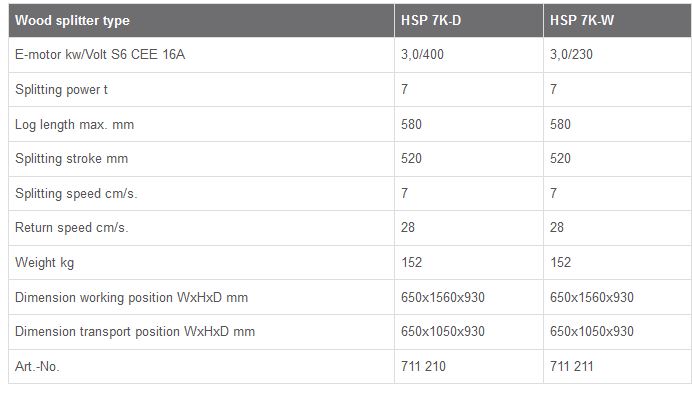

- Model HSP 7K-D and HSP 7K-W are suitable for short wood up to 58cm
- Model HSP 7F-D and HSP 7F-W are suitable for short wood up to 58cm and meter wood up to 110cm. As standard with special knife and swiveling table for meter wood
- With meter log splitter, a possibly required second splitting operation can effortlessly be carried out by means of special knives and swinging in of the lower swinging table
- Wood splitters with PTO connection or tractor hydraulics are equipped as standard with three-point hitch and a large oil tank 11l
- On request also available with gasoline or diesel engine
