Hydro-Hub - Hydronix Sensors

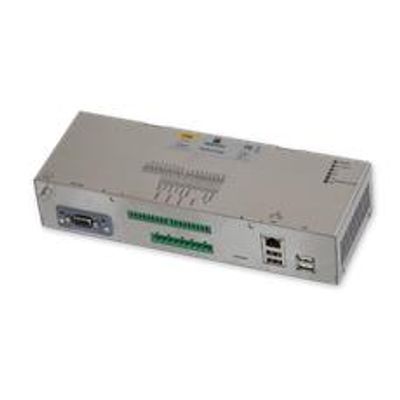

The Hydro-Hub is a central point to connect a Hydronix sensor network of up to 16 sensors with multiple systems simultaneously. The unit provides an easy method of data collection in addition to sensor configuration and diagnostics and calibration selection. Connections can be made using TCP/IP, existing RS485 networks implementing the Hydro-Link Protocol or through the Fieldbus option.
The Hydro-Hub features a built in web server with a web API interface for remote connections enabling interaction with the Industrial Internet of Things. It’s web browser interface provides the flexibility to be used with tablets and PCs. For systems that have already implemented the Hydro-Link protocol, the Hydro-Hub adds the full functionality of Hydro-Com software via the web browser interface.
- Easy to install in new or existing systems

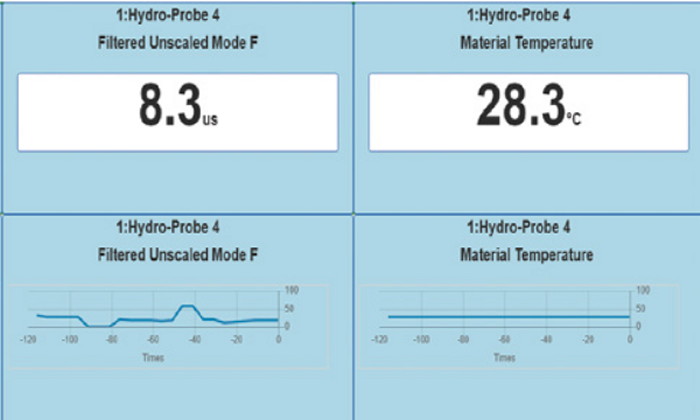

- Live display to view measurements of up to 6 sensors
- Communicates with up to 16 sensors
- Ethernet Port with web browser interface / Web API
- Compatible with modern web browsers
- Calibrate Hydronix sensors
- Log sensor data
- Live sensor diagnostics
- Sensor configuration

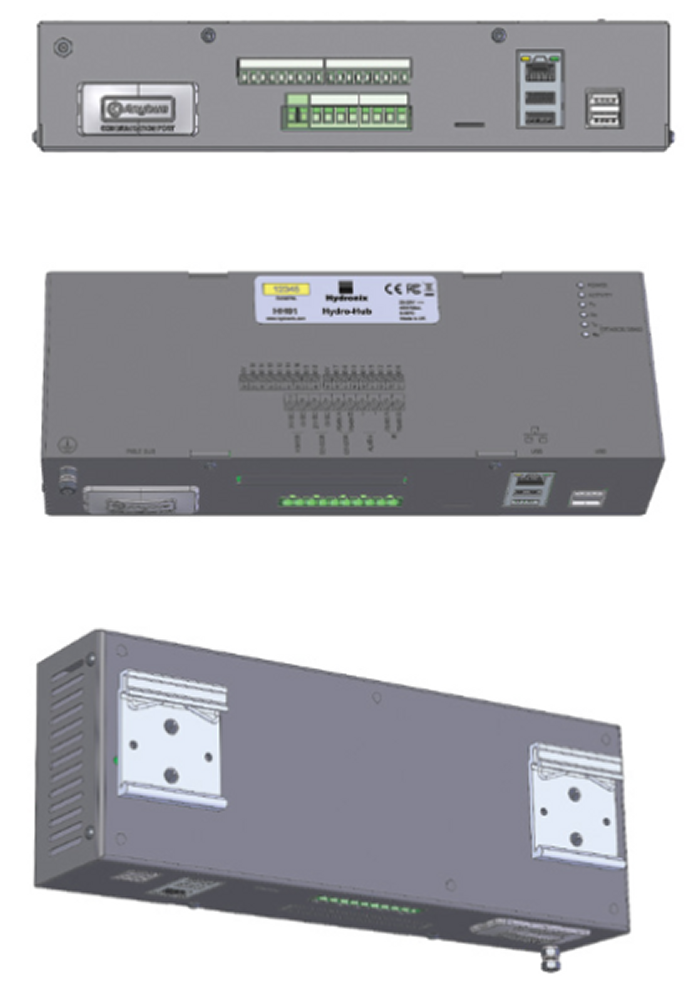

- DIN Rail mountable
- Optional - Fieldbus connection options with EtherNet/IP and PROFIBUS
- Optional - Calibration selection option using digital inputs
The Hydro-Hub is a computer-based system that provides the user with the ability to calibrate and configure Hydronix sensors. Typical applications include measurement in abrasive materials such as sand, aggregates and concrete through to softer materials including grain, animal feed and wood chips.
Body: Stainless Steel.
Linux.

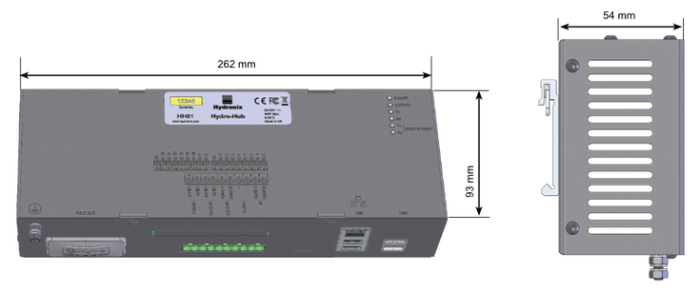

DIN rail mounting to IEC/EN 60715.
24V DC 1.25A (40W) for Hydro-Hub only.
Power for sensors must be calculated separately.
Web browsers with a screen resolution of 1024 x 600 and above.
0 – 50 degrees C.
CommunicationsRS485 communication from Control System.
RS485 communication to sensor network of up to 16 sensors.
Ethernet Port.
Web browser interface over TCP/IP network.
Optional Fieldbus port.
Optional 16 Digital Input card for digital calibration selection (16 sensors, 256 calibrations for each).
USB ports for USB memory sticks for data logging, backup / restore and system upgrade.
Hydro-Hub parts- HH01 Hydro-Hub (includes Mounting Bracket)
- HH01E Hydro-Hub with Expansion Module
- 0117 Power Supply - 24VDC, 120W to power 16 sensors
- On Request Fieldbus Module
- 0175 USB Panel Mount Socket
- HV05EW 4 Year extended warranty option
The Hydro-Hub system for Hydronix moisture sensors is easy to configure to operate in many languages. Our current list of available languages is listed below and we frequently add new ones so please visit this page again to check for updates.
Software Languages include:
- English
- Deutsch (German)
- Español (Spanish)
- Français (French)
- Italiano (Italian)
- Nederlands (Dutch)
- ?????? (Russian)
- ?? (Chinese)
- ??? (Japanese)
- ??? (Korean)
Hydronix is continually updating its product range to include new languages. If your native language is not listed please contact us and we will be able to advise you when it will be available.
