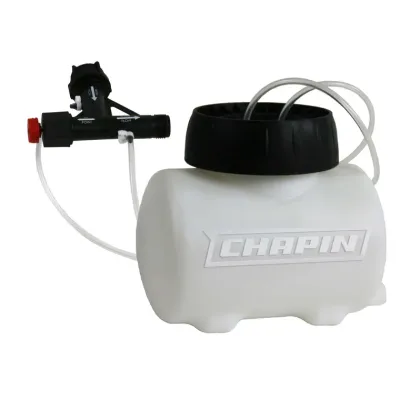

Chapin - Model 4720 - HydroFeed Fertilizing Injection System for Sprinklers and Direct Hose Use
The Chapin 4720 HydroFeed In-Line Fertilizing Injection System is an advanced solution for integrating fertilizers directly into sprinkler and hose systems. Engineered for efficiency, it features a 2-gallon capacity and is compatible with wettable powder fertilizers. The system is designed to deliver nutrients directly to plants via a uniform spray/flow rate, providing consistent application. The construction includes durable tank and seal materials, ensuring longevity and reliable performance under various operational pressures. Its patent-pending design caters to diverse gardening needs, making it suitable for both domestic and professional landscaping applications. Users benefit from its ergonomic tank mouth opening for ease of filling and maintenance. The product includes technical documentation for optimal use and is backed by a comprehensive warranty, reflecting Chapin's commitment to quality and innovation in irrigation solutions.
The Chapin HydroFeed fertilizer injector is a patent-pending design filled with features for use with sprinklers and direct hose spray applications. Great way to conserve water and still have a lush, green, well-fed landscape or garden.
Different than a Hose-end Sprayer
HydroFeed works differently than a standard hose-end sprayer. A standard hose-end sprayer pulls the chemical up and out, emptying the tank. HydroFeed adds water back into the tank as your chemical is being pulled out. Because your chemical has a higher density than water, it sits on the bottom of the tank. Our outlet tube reaches the bottom of the tank so when clean water is being added to the tank, it stays on top of your chemical mix. You don’t have to worry about your chemical being diluted as it’s being fed through the outlet tube. This is why the tank turns clear after your chemical runs out.
- 2-gallon tank
- 4-inch opening for easy filling
- Variable rate adjustment allows for 1 to 10 oz. of product per gallon
- Translucent tank for monitoring usage
- Ideal for liquid fertilizer
- Easily connects to hose spigot or irrigation system with standard hose fittings
- Rigid inlet tube with filter for debris-free mixing
- Drain plug with valve to quickly empty the tank after each use
- Not compatible with drip irrigation systems
- Model Number : 4720
- Tank Size (gallons) : 2
- Tank Mouth Opening (inches) : 4.5
- Tank Material : poly
- Seal Material : nitrile
- Filter : in-tank
- Spray/Flow Rate (GPM) : based on water pressure rated at 40 PSI
- Operating Pressure (PSI) : based on water pressure rated at 40 PSI
- Item Dimensions (L x W x H – inches) : 19.125 x 7.375 x 8.625
- Item Weight (pounds) : 5.71
- Warranty : 1-year limited
