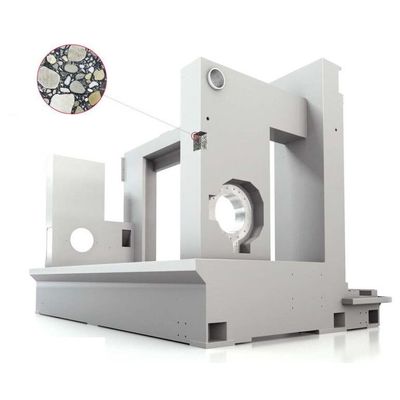

Hydropol - Machine Frames / Machine Beds
HYDROPOL® is a composite material made of steel and a special filler with excellent damping behavior and the perfekt solutione for use in machine frames. FEM Simulations for your individual component. Electrical equipotential bonding based on DIN VDE0113. High thermal capacity & thermal stability. Highest dynamic rigidity. Non-shrinking, dimensionally stable filler based on natural minerals.
Most popular related searches
Your adventages with HYDROPOL
- Highes precessing precision
- Less tool wear = lower tool costs
- Lower maintenance effort
- Lower noise emission
- approx. 50% CO2 savings in production
HYDROPOL® is a hybrid design combination specially developed by framag for vibration damping, consisting of a steel casing filled with high-quality composite materials with damping that is seven times higher than that of single steel design.
HYDROPOL®
- Density up to 2.500kg/m3
- E-modulus up to 60.000N/mm2
- Compressive strength up to 100N/mm2
HYDROPOL MEDIUM®
- Density up to 1.900kg/m3
- E-modulus up to 20.000N/mm2
- Compressive strength up to 30N/mm2
HYDROPOL LIGHT®
- Density up to 1,400 kg/m3
- Modulus of elasticity up to 15,000 N/mm2
- Compressive strength up to 16 N/mm2
HYDROPOL SUPERLIGHT®
- Density only approx. 800 kg/m3
- E-modulus up to 4.000N/mm2
- Compressive strength up to 10N/mm2
- Ideal for dynamic components
