Ikeuchi Europe B.V.

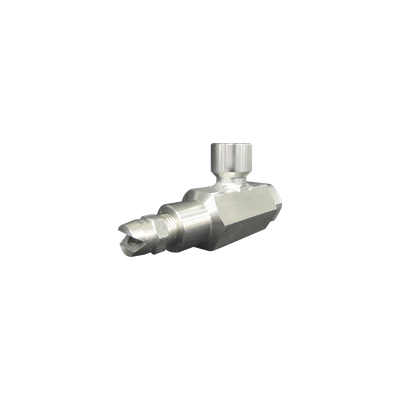

Ikeuchi - Model BAVV Series -Ultra-Low Pressure Fine Fog Flat Spray Nozzle
Ultra-low pressure fine fog flat spray: Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 40 μm or more (*3). Energy-saving for blower-use. Low running cost. Clog-resistant design due to large free passage diameter.
Most popular related searches
- Pipe connection size: Rc1/4
- Spray angle: 60 ° - 60 °
- Droplet size: Fine fog (10-100 µm)
- Air pressure: -
- Standard pressure: 0,2 bar - 1 bar
- Spray capacity: 1.5 L/min - 4.17 L/min
- Free passage diameter: 2.5 - 4.7 mm
- Air consumption: 40 L/min - 550 L/min
Cleaning
Cleaning: Liquid crystal, glass substrate, printed circuit boards.
Humidification
Moisture control: Paper making.
Dust suppression
Dust suppression: Raw material conveyor line.
