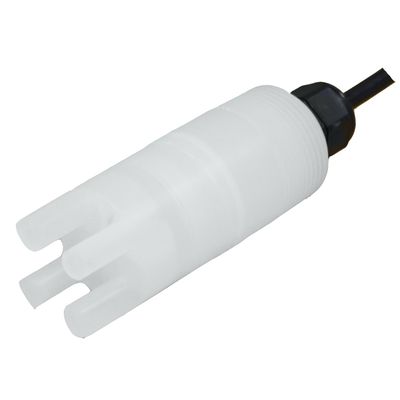

Quadbeam - Model S20-IMM - Immersion Style Sensor
Example concentration: 0-10 g/L SiO2. Applications include Loss Monitoring, Clarifier monitoring and control.
Self-compensating
Multi-beam sensor, virtually eliminates drift due to contamination or electronic ageing.
No lenses to leak, glass-free design.
Simple user interface
Accurate, repeatable & reliable.
Monitoring high solids concentrations, for example fruit pulp monitoring, milk fat concentration, product to water interface, solids concentration control.
+/- 2% of reading
Repeatability+/- 1% of reading
Temperature0 to 85°C operating range
Pressure10 Bar
CablePolyurethane covered cable rated to 95°C. Extension cables can be supplied to extend the cable up to 50m.
TransmitterQuadbeam MXD75 or MXD73
Body StyleImmersion Style Body
880nm - Standard. Other wave lengths available
Body MaterialPP - Polypropylene
Cable10- Both immersion and hygienic sensors are supplied with a 10m cable as standard. Other lengths available
ConnectorNC- No Connector. Cores stripped and crimped for direct connection with the MXD Transmitters CA - Amphenol Connector. For use with Hygienic sensors using extension cables.
Sample model no; S20-IMM-880-PP-10-NC
Optional ExtrasCleaner - powered using air at 5 Bar.
