Monitoring high solids concentrations, for example fruit pulp monitoring, milk fat concentration, product to water interface, solids concentration control.

Accuracy

+/- 2% of reading

Repeatability

+/- 1% of reading

Temperature

0 to 80°C operating range

Pressure

10 Bar

Cable

Polyurethane-covered cable rated to 95°C. Extension cables can be supplied to extend the cable up to 50m.

Transmitter

Quadbeam MXD75 or MXD73

Body Style

Immersion Style Body

Wave Length

880nm - Standard. Other wave lengths available

Body Material

PP - Polypropylene

Fingers - Polsulfone

Cable

10m - Both immersion and hygienic sensors are supplied with a 10m cable as standard. Other lengths available

Cleaner

Cleaner - powered using air at 5 Bar.

Connector

NC- No Connector. Cores stripped and crimped for direct connection with the MXD Transmitters CA - Amphenol Connector. For use with Hygienic sensors using extension cables.

Sample model no; T30-IMM-880-PP-10-NC

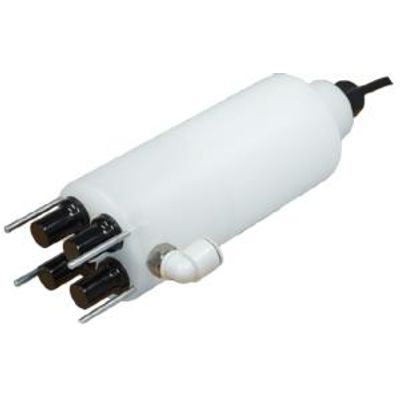

Quadbeam - Model T30-IMM - Immersion Style Sensor
