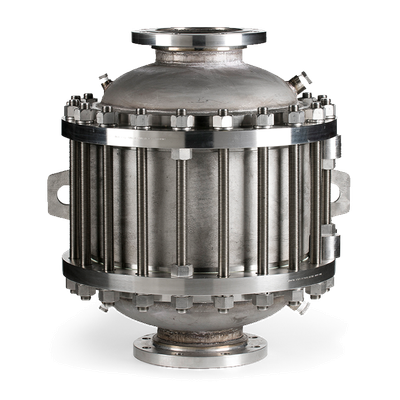

Lamot Valve & Arrestor - Model L7658A - Inhibits Flame Propagation in Gas Piping Systems

SHARE
The Model L7658A Detonation In-Line Flame Arrestor is engineered to prevent flame propagation in gas piping systems, making it a suitable choice for safeguarding liquid storage tanks containing NEC Group D (IEC Class IIA) gases with a maximum experimental safe gap of 0.90 mm or more. Capable of both vertical and horizontal installations, it manages in-line or end-of-line deflagrations, unstable detonations, and burn times up to 10 minutes. Bi-directional flow and ignition source configurations are supported, with removable elements for onsite cleaning and maintenance. The design boasts a low pressure drop, with a range of element sizes per flange size to meet specific needs, and is built from high-quality carbon steel or stainless steel. Certified under ATEX Directive and USCG (33 CFR Part 154 App. A Type II), this flame arrestor demands the use of a thermocouple for flame detection, operating efficiently within temperature ranges of -4 to 140 ºF (-20 to 60 ºC) and at a maximum operational pressure of 15.7 psia (1.08 bara).
Most popular related searches
propagation system

The L7658A model inhibits flame propagation in gas piping systems. It is ideal for protecting liquid storage tanks containing NEC Group D (IEC Class IIA) gases with a maximum experimental safe gap equal to or greater than 0.90 mm.

  • Vertical or horizontal installation
  • In-line or end-of-line deflagrations
  • Unstable detonations
  • Burn Time tBT 10 minutes
  • Bi-directional with respect to flow and ignition source
  • Elements are easily removed in-line for cleaning and maintenance and are economical to replace if necessary
  • Low pressure drop with multiple element sizes available for each flange size
  • Thermocouple is required for flame detection per the ATEX & USCG codes

Size: 2″ (DN50) x 5″ (DN125) through 6″ (DN150) x 12″ (DN300)
Material: Housing standard material: carbon steel or stainless steel • Flame element standard material: stainless steel
Pressure: Maximim Operational pressure 15.7 psia (1.08 bara)
Certification: Certified to ATEX Directive in compliance with EN ISO 16852:2010 Certificate #: IBExU12ATE X2160 X • Certified to USCG per 33 CFR Part 154 App. A Type II Certificate #: CSA LO 4000-5704 • Thermocouple is required for flame detection per the ATEX & USCG
Temperature: Operational Temperature Range -4 to 140 ºF (-20 to 60 ºC)
