Crosstrap - Model TA132 -Insect Traps with Dry Collection Cup

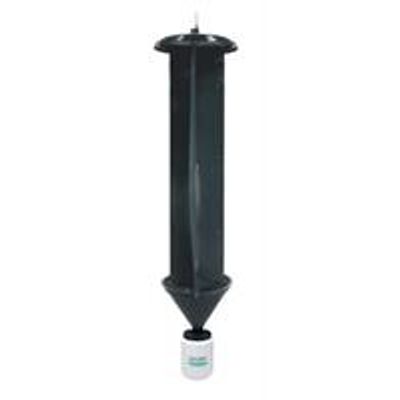

The trap consists of a polypropylene lid, 33 cm in diameter with a central carabiner attached to a steel spring. Two reinforced PVC sheets are held in place by four steel springs in the lid`s upper sec-tion, serving as shock absorbers against strong winds. This helps to avoid damage to the trap. In the lower section, the reinforced PVC sheets are held in place by a polypropylene funnel, 30 cm in dia-meter and four steel springs. The collection cup for the captured insects is in the lower section of the funnel and is attached by metal screws.

The PVC sheets, funnel and collection cup are treated with a slippery film to significantly increa-se captures and prevent the pests from escaping.

The dry collection cup has approximately a 2 litre capacity (12,5 cm diameter x 19 cm height) and is provided with a stainless steel mesh that drains away rainwater 100% and provides excellent air cir-culation for dry (live) captures.

Once deployed the trap measures 33 cm in diameter by 146 cm in height. When folded up it measu-res 30 cm in diameter and 40 cm in height which facilitates transportation. The trap is activated by placing attractants into the sheet holes. Due to the trap’s structure and its highly resistant component parts it can be operational for up to 7 years.

POSITIONING AND USE: The trap should be suspended horizontally with a rope in-between two trees or from one of the branches, taking care that the trap does not come into contact with the tree trunk. In this way, the trap does not knock against the tree and break, therefore ensuring that the insects are able to distinguish the trap from the tree trunk and go to the CROSSTRAP® trap.

The height of the installed trap is not of importance, as long as the collection cup does not touch the ground or any other object. A metal support designed specifically for this purpose is also available: ECONEX CROSSTRAP^® SUPPORT (Code: TA147).
