Our specialist team of engineers have maximised machine intake and output, increased bale density and reduced maintenance intervals to ensure the Fusion 4 range of machines surpasses all your baling and wrapping expectations.

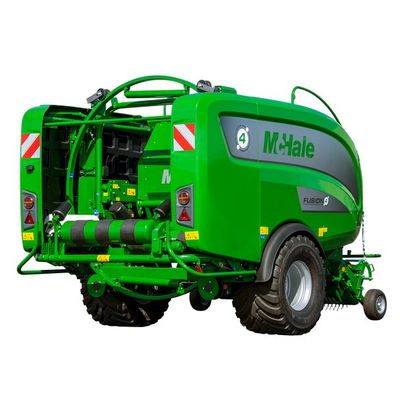

These levels of comfort, when paired with proven features such as the patented bale transfer system and the vertical wrapping ring, enable the McHale Fusion 4 range of machines to offer durability, reliability and high output to the end user.
Patented Bale Transfer
When the netting process is complete the bale chamber splits horizontally. As the top section of the bale chamber moves up, the lower section of the bale chamber simultaneously moves up and out, transferring the bale onto the wrapping platform.
Vertical Wrapping Ring
The vertical wrapping ring is fitted with two 750 mm dispensers, which take approximately 18 seconds to apply 4 layers of film and approximately 24 seconds to apply 6 layers of film in ideal working conditions. In ideal operating conditions, this means that the wrapping platform is always waiting for the next bale.
- 2.1m Profi-Flo Pick-Up
- 25 Knife Heavy Duty Feed Rotor
- Drop Floor Unblocking System
- 50 & 55 mm Bale Chamber Bearings*
- 1¼” Chain on the Bale Chamber
- Automatic Progressive Greasing System
- Automatic Oiling System
- Expert Plus Control Console (Large Graphic Display)
- 560/60-22.5 Tyres
- 18 Roller Bale Chamber
- 4 Bar Pivot Stretch Netter
- Vertical Wrapping Ring with Film Break Sensors
