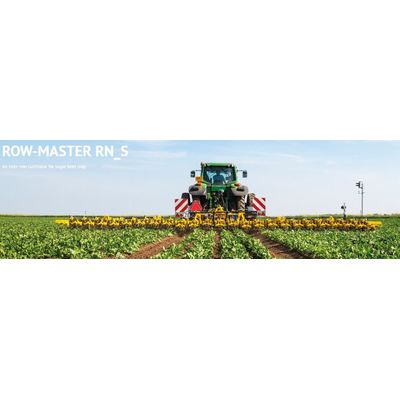

Bednar - Model ROW-MASTER RN_S - Inter-Row Cultivator
The ROW-MASTER RN_S cultivator is designed for weeding inter-rows, removing the soil crust, eliminating the growth of weeds, and creating a proper soil climate in sugar beet crop. The cultivator can be easily adjusted for an inter-row spacing of 45-50 cm and equipped with various equipment to adjust to the specific crop condition. To reduce the risk of damaging the crop and to achieve high outputs, the cultivator can be equipped with the self-guiding CultiCam system.
A inter-row cultivator that eliminates the occurrence of weeds in sugar beet crop with an adjustable inter-row spacing of 45-50 centimetres.
ROW-MASTER RN_S CULTIVATOR
Weeding = the way for higher yields.
Sugar beet needs an ideal soil environment to achieve adequate yield-generating elements. Weeding is one of the options how to achieve that. It makes air accessible to the roots, disrupts the soil crust, removes weed plants from inter-rows, and increases the sugar content of tubers
A REAL EXPERT
A modular system adjustable to specific conditions.
A great advantage of the ROW-MASTER RN_S cultivator is the high variability of the equipment. The different types of working sections make it possible to adjust the cultivator to the current growth stage of the crop so that loosening is performed as best as possible and without the risk of crop damage.
WORKING SECTIONS MOUNTED ON A PARALLELOGRAM
Precise guidance in any conditions.
The individual working units are mounted to the frame using a clamp. The parallelogram contours the terrain and maintains the set working depth of the cultivation units in a precise way. The parallelogram completely eliminates movements caused by unevenness.
SILENT-BLOCK MOUNTING OF WORKING UNITS
A unique way of increasing down pressure.
Each working unit is mounted on a parallelogram, placed on silent-blocks. The down pressure of the working units is provided by the unique method of mounting in two pairs of silent-blocks. The down pressure of up to 80 kg per unit ensures that the set depth is maintained even in extremely hard and difficult conditions.
STABILISING AND SUPPORT WHEELS
For guidance and maintaining the set working depth.
The ROW-MASTER RN_S cultivator is equipped with stabilising steel wheels of the side frames that keep the cultivator within the rows. Each working unit has its own support wheel that helps maintain the set working depth and contours the terrain.
CULTICAM - AUTOMATED GUIDANCE SYSTEM
Minimising the risk of crops damages, higher output and precise loosening, even at the early growth stage.
CultiCam, a guiding camera, reads the row lines, transfers the information to the system that sends data to the control unit, which transmits signals to the electric valves that move the frames to the left, or right. The camera can guide working units from the very early stage of crop emergence and it considerably increases productivity and comfort of work.
