Interpiquet - Mechanical Driven Swing Arm Mower
From Agricultural Mulchers -Vine
Mechanical driven swing arm mower can be used to mow around trees, posts, crash barrier, etc. without any damage. Mechanical transmission by power take-off for tractors between 35 and 105 hp. Requiring a double effect hydraulic’s service for the slope and a simple effect service for the hydropneumatic suspension.
-
Most popular related searches

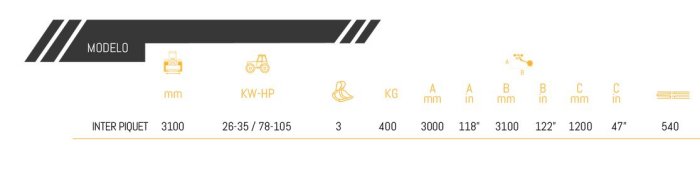

Characteristics
- 3 point hitch – cat. II.
- Cutting width of 850 mm (32 inches)
and 1.200 mm (47 inches). - Backwardation from the axis of the tractor
of 2.000 mm (79 inches and 3.100 mm (122 inches). - Lenght for the transport of 2.300 mm
(90 inches) and 3.000 mm (118 inches). - 3 retractable knives.
- Mechanical transmission by power take-off.
- Pushing control by hydropneumatic suspension (adjustable).
- Hydraulic recovery control (adjustable).
- Hydraulic location according to the
necessity activated from the tractor (1 double effect’s service). - PTO 540 rpm.
- Rubber sleeve around the plate.
- «Lower bowl of control on the ground
and rear wheel.» - Height adjustable rear wheel.
- Model built under EC Normative.
- Safety indicators visible to personnel.
