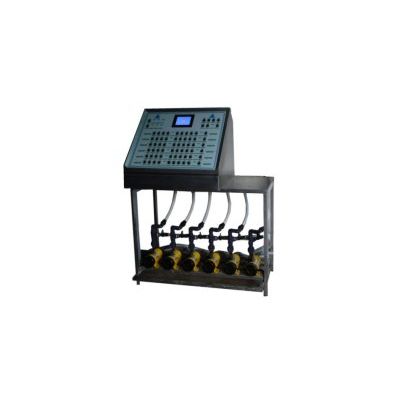

H2 - Model R700 HYDRO - Irrigation Controller
From Irrigation
Hydroponic controller specifically designed for closed and/or recirculation systems. This unit uses Electric Conductivity (EC) and pH to control fertilizer dosage in the nutrient solution. These units fit to perfection for pure based systems or substrate based systems with recirculation. Our irrigation controllers are the result of 10 years of experience developing fertigation and irrigation controllers. Our systems have been tested in very demanding conditions and by professional growers across Europe; that’s why we can assure that our H2 R700 units are so successful.
What does H2 R700 Hydro control?
It controls and handles up to 6 independent nutrient solution tanks in real time.
- Variable frequency drivers
- Electronic flow
- Irrigation
- Pumps
- Fertilizer Tanks stirring
- Fertilizer dosage and control on pH and EC (Electric Conductivity)
- Filter cleaning
R700 Hydro Features
- Up to 3 irrigation pumps
- 5,7” touchscreen
- Up to 32 valves per sector
- Control of CE based on modulation or reference
- Automatic modification of CE based on solar radiation
- Control of pH based on modulation or reference
- Control of Fertilizer Tanks levels
- Electronic control of Nutrient Solution levels
- Stirrings and blowers
- 6 Different Fertilizer Sources
- 1 Acid
- Up to 10 filtering stations
- 20 Independent programs
- Irrigation cycles on demand
- Irrigation cycles by frequency
- Irrigation cycles by external signal (Solar Radiation)
- Irrigation cycles by time or volume
- Drainage
- Mixing of different water sources
- Automatic application of chemical treatment
- Independent control of Nutrient Solution Levels
Optional Features R700 Hydro
Communication and connectivity
16 configurable outputs; optionally up to 64
GSM
SMS Text Message Alarm System for 2 different mobile number. Configurable.
PC SOFTWARE OPERATION
Through Windows environment, we can operate the R700 from PC, obtain data historicals, manage data storage and analysis, etc.
