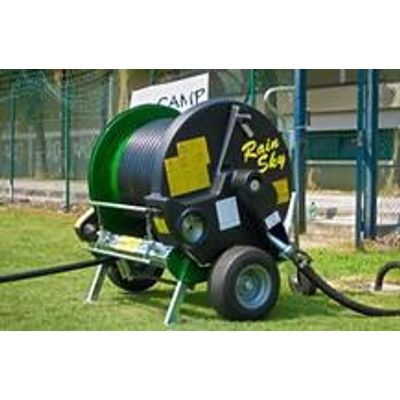

Irrimec - Model RAIN SKY -AAA 40 F 110 -Irrigation Hose Reel Machine
FromIrrimec s.r.l.
A reliable, up-to-date piece of equipment. Designed and built for sports fields, green areas and market gardens.
Most popular related searches
hose reel irrigation
standard sprinkler with nozzle
irrigation tube
tractor PTO
irrigation
irrigation reel
mini tractor
tractor
irrigation trolley
hose reel irrigation system
- Can be moved manually or with mini tractor
- Automatically held in place by the front jack
- Auto shut-off (optional)
- Sprinkler trolley hooked by the machine
- Turbine drivea
- Manual PTO for the AAA model, tractor PTO for the A5 models
- Complete mechanical protection
- STEEL DOUBLE SUPPLY PIPE. Eases the supply of water to the hose reel in all working positions.
- DISCHARGE VALVE. Stops the motor pump by creating a sudden pressure loss.
- SHUT-OFF VALVE. Stops irrigation by creating a rise in pressure.
- SHUT-OFF VALVE WITH PROGRAMMABLE ELECTRIC MOTOR. 4 different shut down speeds to avoid any water hammer.
- TURNTABLE ROTATION KIT used to turn the turntable easily to the required position.
- PTO WIND-IN KIT used for winding-in hose with a tractor pto. Standard fitting on machines with turbine, optional extra machines with bellow driving system.
- HYDRAULIC KIT allows to use the hydraulic system of the tractor to drive the standing foot, the stabilizing legs, the trolley lifting system and the drum rotation.
- GALVANISING recommended for machines spreading slurry and dirty water.
- ROAD OMOLOGATION with certificate of conformity.
- ENGINE DRIVEN INDEPENDENT HYDRAULIC KIT. Allows the movements hydraulically by means of a small diesel or petrol engine.
- ALTERNATOR for battery recharge with regulation circuit.
- MANUAL HYDRAULIC KIT for lifting trolley and anchor stabilizing legs.
- TROLLEY FOR OVER FOLIAGE IRRIGATION
- TROLLEY FOR IRRIGATION UNDER FOLIAGE LEVEL
- AUXILIARY GUN connected to the dosidis, allows accurate irrigation of the last twenty meters around the hose reel.
- HYDRAULIC PUMP ON BOARD driven by PTO of the tractor allowing machine`s movements.
- AIR COMPRESSOR used for blowing air into the hose to empty the machine from water.
- REMOTE CONTROL for hydraulic kit.
- GSM MODULE DOSIDIS allows the check of the set parameters and modify them from remote via SMS text messaging
- 3 meters rubber supply hose with couplers.
- Standard trolley with wheels.
- Standard sprinkler with nozzles.
- Crank for winding in hose.
- Operator`s manual and spare parts list.
- Pressure gauge in glycerine bath and gauge cock.
