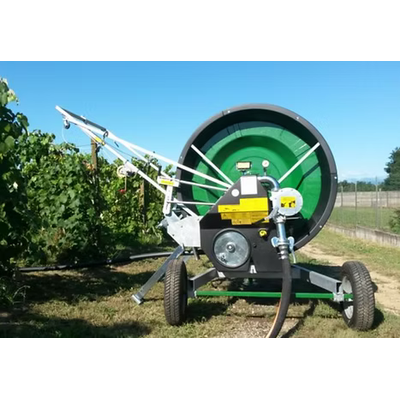

Irrimec - Model MINI RAIN-AAG -Irrigation Hose Reel Machine
FromIrrimec s.r.l.
Economic and “multi-use” models just right for professional watering of small and medium areas.
Most popular related searches
hose reel irrigation
standard sprinkler with nozzle
irrigation tube
hose winding
tractor PTO
irrigation
irrigation reel
agriculture wheel
tractor
irrigation trolley
- Turntable turret
- Bellows drive or turbine drive two turbine size for 3/20 or 10/50 m3/hr
- Automatic system for winding hose in at a constant speed
- Tractor PTO for winding the hose in quickly without water - standard fitting on turbine machine, optional extra on bellows machine
- Safety cut off system to stop wind-in at the end of the run or in the event of hose winding in unevenly
- Winch trolley lifting system on Eco Rain machines, optional extra
- Three wheel trolley with adjustable carriage
- Standard sprinkler with three nozzles
- Rubber supply hose, high pressure, with couplers
- STEEL DOUBLE SUPPLY PIPE. Eases the supply of water to the hose reel in all working positions.
- DISCHARGE VALVE. Stops the motor pump by creating a sudden pressure loss.
- SHUT-OFF VALVE. Stops irrigation by creating a rise in pressure.
- SHUT-OFF VALVE WITH PROGRAMMABLE ELECTRIC MOTOR. 4 different shut down speeds to avoid any water hammer.
- TURNTABLE ROTATION KIT used to turn the turntable easily to the required position.
- PTO WIND-IN KIT used for winding-in hose with a tractor pto. Standard fitting on machines with turbine, optional extra machines with bellow driving system.
- HYDRAULIC KIT allows to use the hydraulic system of the tractor to drive the standing foot, the stabilizing legs, the trolley lifting system and the drum rotation.
- GALVANISING recommended for machines spreading slurry and dirty water.
- ROAD OMOLOGATION with certificate of conformity.
- ENGINE DRIVEN INDEPENDENT HYDRAULIC KIT. Allows the movements hydraulically by means of a small diesel or petrol engine.
- ALTERNATOR for battery recharge with regulation circuit.
- MANUAL HYDRAULIC KIT for lifting trolley and anchor stabilizing legs.
- TROLLEY FOR OVER FOLIAGE IRRIGATION
- TROLLEY FOR IRRIGATION UNDER FOLIAGE LEVEL
- AUXILIARY GUN connected to the dosidis, allows accurate irrigation of the last twenty meters around the hose reel.
- HYDRAULIC PUMP ON BOARD driven by PTO of the tractor allowing machine`s movements.
- AIR COMPRESSOR used for blowing air into the hose to empty the machine from water.
- REMOTE CONTROL for hydraulic kit.
- GSM MODULE DOSIDIS allows the check of the set parameters and modify them from remote via SMS text messaging
- 4 meters rubber supply hose with couplers.
- 3 wheel trolley, adjustable wheelbase, and weights.
- Standard sprinkler with nozzles.
- Agricultural wheels model 195/70 R15
- Pressure gauge in glycerine bath and gauge cock.
- Tachometer showing pull-in speed.
- Crank for winding in hose.
- Galvanised chassis and turret
- Operator`s manual and spare parts list.
