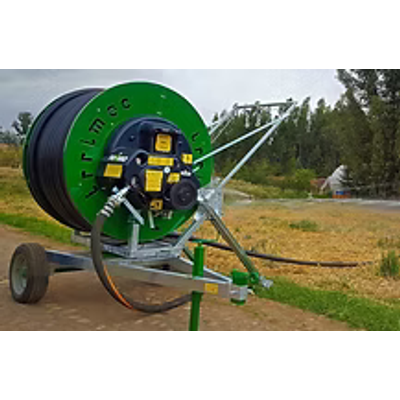

Irrimec - Model OPTI RAIN-ST2 -Irrigation Hose Reel Machine

SHARE

The new generation of hose reels conform to the European safety standards.

Most popular related searches
hose reel irrigation
standard sprinkler with nozzle
irrigation tube
irrigation
irrigation reel
tractor PTO
agriculture wheel
irrigation trolley
tractor
hose reel irrigation system
  • Hose reel perfectly guarded and drum sides smooth
  • Chassis in formed steel high resistance, U profile, with 2 wheel, or on demand, float- ing tandem axle on the models ST7 and ST8
  • Adjustable wheel track to give greater sta- bility in transport
  • Winding diameter of the hose drum con- forms to the ‘CE’ directives
  • Easier PET winding-in by means of a big drive ring on the series ST3-4-15-6 & 7 and double transmission on the ST8 models
  • Turbimec driving system interchangeable for flows from 5 to 130 mc/h
  • Oil bath gearbox with different drive speed ranges with PTO and automatic drum brakes incorporated
  • Electronic system controlling the irrigation parameters DOSIDIS/TAKY
  • Large range of optionals accessories
  • STEEL DOUBLE SUPPLY PIPE. Eases the supply of water to the hose reel in all working positions.
  • DISCHARGE VALVE. Stops the motor pump by creating a sudden pressure loss.
  • SHUT-OFF VALVE. Stops irrigation by creating a rise in pressure.
  • SHUT-OFF VALVE WITH PROGRAMMABLE ELECTRIC MOTOR. 4 different shut down speeds to avoid any water hammer.
  • TURNTABLE ROTATION KIT used to turn the turntable easily to the required position.
  • PTO WIND-IN KIT used for winding-in hose with a tractor pto. Standard fitting on machines with turbine, optional extra machines with bellow driving system.
  • HYDRAULIC KIT allows to use the hydraulic system of the tractor to drive the standing foot, the stabilizing legs, the trolley lifting system and the drum rotation.
  • GALVANISING recommended for machines spreading slurry and dirty water.
  • ROAD OMOLOGATION with certificate of conformity.
  • ENGINE DRIVEN INDEPENDENT HYDRAULIC KIT. Allows the movements hydraulically by means of a small diesel or petrol engine.
  • ALTERNATOR for battery recharge with regulation circuit.
  • MANUAL HYDRAULIC KIT for lifting trolley and anchor stabilizing legs.
  • TROLLEY FOR OVER FOLIAGE IRRIGATION
  • TROLLEY FOR IRRIGATION UNDER FOLIAGE LEVEL
  • AUXILIARY GUN connected to the dosidis, allows accurate irrigation of the last twenty meters around the hose reel.
  • HYDRAULIC PUMP ON BOARD driven by PTO of the tractor allowing machine`s movements.
  • AIR COMPRESSOR used for blowing air into the hose to empty the machine from water.
  • REMOTE CONTROL for hydraulic kit.
  • GSM MODULE DOSIDIS allows  the check of the set parameters and modify them from remote via SMS text messaging
  • Manual mechanical trolley lifting device
  • 4 meters rubber supply hose with couplers.
  • 3 wheel trolley, adjustable wheelbase, and weights.
  • Standard sprinkler with nozzles.
  • Agricultural wheels model 195/70 R15
  • Pressure gauge in glycerine bath and gauge cock.
  • Tachometer showing pull-in speed.
  • Crank for winding in hose.
  • Galvanised chassis and turret
  • Operator`s manual and spare parts list.
