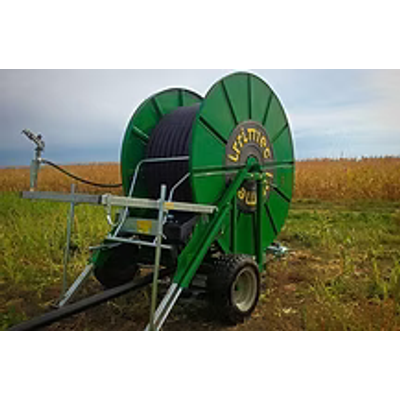

Irrimec - Model MASTER -MT15 -Irrigation Hose Reel Machine
All the benefits of a support platform system plus the convenience of a hydraulic system. The Master range of irrigators are today the highest reference point for the professional irrigation. It has been designed and built to operate on large farms and it is equipped with long hoses of large diameter. The ma- chine in working position sits on the ground on a large diameter galvanised platform which insures a practical, stable and safe operation in all working conditions and at the same time permits 360 degree rotation of the drum.
The unusually high ground clearance allows easy transportation of the irrigator even in the most difficult grounds conditions. A central hydraulic control unit for the raising and lowering of the wheels, the stabilizing legs & the trolley and the rotation of the drum allows the machine to be operated by one man alone. The patented Irrimec turbine cast in aluminium and its unique impeller design means that friction losses are kept to an absolute minimum at the same time guaranteeing a large range of wind- in speeds (10-100 M/hr) and flows from 10M3/hr - 130 M3/hr. The gearboxes have built-in PTO wind-in and automatic drum braking when the trolley is being pulled out. Models MT & MF have a low torque drive on one side of the drum and models MM/MDT/ MDT MP have low torque drive on both sides of the drum. The large diameter drive rings allow a high degree of efficiency. All models can be fitted with the Irrimec computer control system DOSIDIS/TAKY.
- STEEL DOUBLE SUPPLY PIPE. Eases the supply of water to the hose reel in all working positions.
- DISCHARGE VALVE. Stops the motor pump by creating a sudden pressure loss.
- SHUT-OFF VALVE. Stops irrigation by creating a rise in pressure.
- SHUT-OFF VALVE WITH PROGRAMMABLE ELECTRIC MOTOR. 4 different shut down speeds to avoid any water hammer.
- TURNTABLE ROTATION KIT used to turn the turntable easily to the required position.
- PTO WIND-IN KIT used for winding-in hose with a tractor pto. Standard fitting on machines with turbine, optional extra machines with bellow driving system.
- HYDRAULIC KIT allows to use the hydraulic system of the tractor to drive the standing foot, the stabilizing legs, the trolley lifting system and the drum rotation.
- GALVANISING recommended for machines spreading slurry and dirty water.
- ROAD OMOLOGATION with certificate of conformity.
- ENGINE DRIVEN INDEPENDENT HYDRAULIC KIT. Allows the movements hydraulically by means of a small diesel or petrol engine.
- ALTERNATOR for battery recharge with regulation circuit.
- MANUAL HYDRAULIC KIT for lifting trolley and anchor stabilizing legs.
- TROLLEY FOR OVER FOLIAGE IRRIGATION
- TROLLEY FOR IRRIGATION UNDER FOLIAGE LEVEL
- AUXILIARY GUN connected to the dosidis, allows accurate irrigation of the last twenty meters around the hose reel.
- HYDRAULIC PUMP ON BOARD driven by PTO of the tractor allowing machine`s movements.
- AIR COMPRESSOR used for blowing air into the hose to empty the machine from water.
- REMOTE CONTROL for hydraulic kit.
- GSM MODULE DOSIDIS allows the check of the set parameters and modify them from remote via SMS text messaging
- Manual mechanical trolley lifting and anchor stabilizer legs and mechanical jack.
- 4 meters rubber supply hose complete with couplers.
- Three wheels standard trolley, fixed body with weights.
- Standard sprinkler with nozzles.
- Agricultural wheels model 10.0/75-15,3 10PR
- Pressure gauge in glycerine bath and gauge cock.
- Tachometer showing pull-in speed.
- Crank for winding in hose.
- Operator`s manual and spare parts list.
