Model AG2000 - Irrigation Magmeter

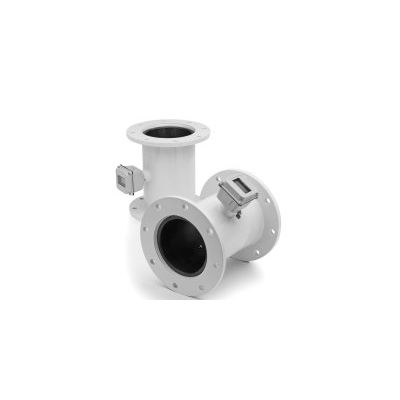

The AG2000 is a spool-type electromagnetic flowmeter for use in irrigation applications in 4” to 10” pipe. With no moving parts, these meters have unobstructed flow and are resistant to wear from debris found in ground or surface water. There are no bearings or propeller to wear out. Minimal straight pipe requirements allow AG2000 meters to be used in piping configurations where there is little space between the meter and an elbow. The AG2000 is battery powered with two lithium “D” batteries. Where an external power source is available, it can be optionally converted to 12-24 Vdc, with the batteries then serving as backup in case of power failure. This configuration will indefinitely prolong battery life. The meter comes with built-in pulse output for data logging or telemetry. Optional features include immersible electronics for burial or occasional vault flooding, bi-directional flow indication, and external power with battery backup.
