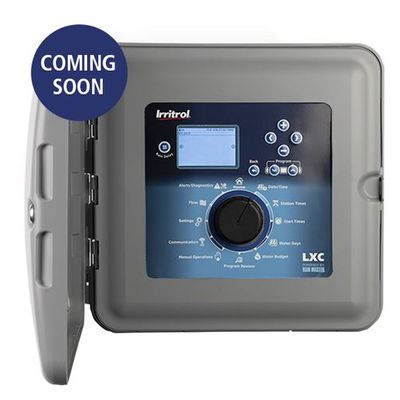

Irritrol - Model LXC Series - Irrigation Management Controller
LXC Series Controllers are Irritrol’s premier irrigation management solution designed to provide large-scale residential and light-commercial contractors with the flexibility of conventional or two-wire control, straight-forward operation, and contractor specific convenience features.
Familiar dial functionality, a large color display and intuitive navigation buttons ensure a short learning curve and quick start up
2-Wire models with 60 and 100 stations makes LXC a convenient, economical and easy to manage choice for large residential or light commercial job sites
Standard 8 programs, each with 8 start times, and the ability to run up to four simultaneous stations or programs.
With 12 fixed stations and modular station expansion up to 52 stations, LXC is ideal for a wide variety of standard system installations or expansions
Station modules’ quick connect feature and confirmation LED automatically aligns the module and confirms a secure connection
Compatible with Irritrol Wireless Weather Sensor to automatically adjust watering schedules based on site specific weather conditions
Save labor hours and reduce response time with SMARTscape™ to quickly control and manage LXC and other Irritrol controllers from a PC or mobile device
Capacity
Up to 4 simultaneous stations or programs
CSA Listed
Maximum Output per Station
24V AC, .5 amps (4-stations max, plus 2 pump/master)
Maximum Total Output
24V AC, 50/60Hz, 1.6 amps
Station Run Times
1-24 hours in 1-minute increments
Transformer Input
120V AC, 50/60Hz, .7 amps
UL Listed
Watering Schedule (Irrigation Schedule)
- Any day of the week
- Skip days from 1 to 31 days between irrigation days
- Odd or even date watering
