Sautec - Isolated Load Mobile Conveyor

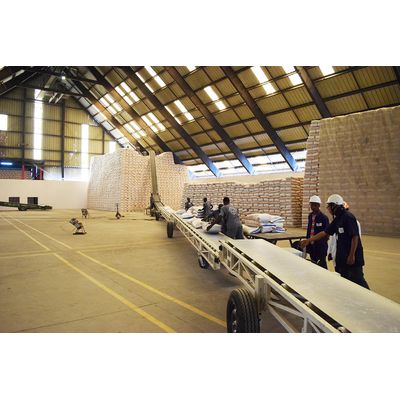

For many years, SAUTEC has been producing a grasshopper conveyor for isolated loads. This is the ideal machine for handling bags, tyres or cartons. You can optimize the conveying and lifting of your products. Our conveyors cover a wide range of uses. They can just as well be used to store bags in a shed as to load a truck. Versatile as they are, they can also be optimized for the loading of boats, barges or containers.
Our mobile conveyor for isolated loads combines versatility with robustness
Various mobile conveyor versions are available for isolated loads according to your needs. The length of an isolated load conveyor can thus vary between 6 and 30 meters.
Read more
Many options available for your mobile conveyor
In order to ensure maximum customer satisfaction, we have developed a range of options enabling you to get a conveyor that is truly tailored to your needs.
Read more
- High throughput from 60 to 200 tons per hour
- Optimum slope height thanks to optimized clearance
- Robustness thanks to simplicity and quality of construction
- Painted steel or galvanized steel finish
- Closing the corner pieces to avoid any deposit
- Adjustable tilt with excellent stability by height adjustment by 2 hydraulic cylinders
- Geared motor with hollow shaft without loss of torque
- Three-phase plug socket with phase inverter
- Hoisting rings for safety during unloading
- Rubberized driven drum
- Drum with removable hubs
- Inner scraper with pressure adjustment
- Loading hopper with double sealing flaps
Maneuverability options
- 4 rear swivel wheels
- Pivot & swiveling front wheels
- Rear jockey wheel
- Geared motor on front wheel
- Security system with wheel lock
- Hydraulic drive system for lifting
- Remote control
Supply options
- Galvanized hood
- Chassis closure (bottom and sides)
- Round hopper 600mm
- Large hopper 2.7M
- Side risers with wood or steel sides
- Extensions with bibs
- Feed hopper 3mx3m or 10m3 with adjustable outlet hatch
Engine options
- 2m/s engine
- 2-speed electric motor or frequency converter, hydraulic or thermal possible
- Gimbal sleeve
- Brake motor
Product release options
- Gooseneck
- Cable or motorized chute
- 1.5M or 2M thrower
- Thrower
- Rotary counter brush
- Scraper
