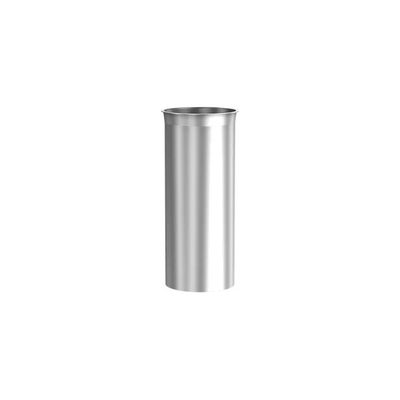

Jacob - Push-in Pipes
Push-in pipes should only be used in cases where length adjustment is necessary. Due to their design, push-in pipes are not shock explosion proof. The easy solution for creating special lengths on site within a modular system. Push-in pipes are available in different lengths and are fitted with a ring seal. They are inserted into a welded pipe as far as required and then fixed in place with a pull-ring. The push-in pipe should be inserted at least 50 mm into the straight pipe, and the minimum length that is bridged is 45 mm. The easiest way of creating a special length – without sawing, welding or lip flanging!
This connection is not shock explosion proof. Admissible over-pressure 100 mbar (1000 mm WG, 10,000 Pa).
Push-in pipes are not telescopic pipes that can be adjusted during operation. When push-in pipes are installed horizontally, support must be provided directly on the pipe before or the pipe after the push-in pipe. In vertical pipework, the pipe under the push-in pipe must be supported. Use in pipework conveying foodstuffs is not recommended. Please also read and take into account our push-in pipe installation instructions.
Diameters available
60, 80, 100, 120, 140, 150, 175, 200, 224, 250, 280, 300, 315, 350, 400 mm
Materials available
Powder coated, Galvanised & Stainless steel
Thickness Available
1 mm, 1.5 mm, 2 mm & 3 mm
