JINLONG - Model JLF-1380 - Poultry Ventilation 54

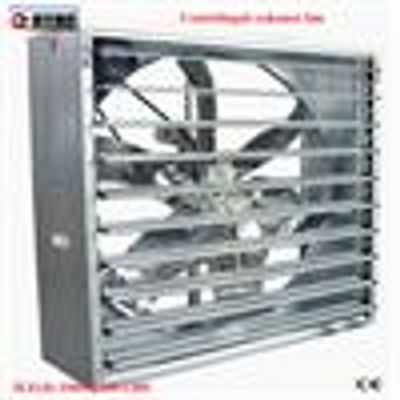

poultry ventilation 54" fan Weight balance type exhaust fan (drop hammer type exhaust fan) Weight balance type exhaust fan (drop hammer type exhaust fan) features： 1． Mirror designed Stainless steel balde,with big air volume,never distortion and broken, the angle of the blades is patented designed 2． Galvanized steel sheet ,the layer of galvanizations more than 180 g/㎡,one-off moled frame, 3． experiment of homeostasis make the blade work smoothly,nearly no noise and steadily output of air 4． Belt pulley are aluminium magnesium alloy injection moulded ,light and high-strength 5． Adopt auto belt-tensioner which can adjust the loose or tighten of belt and never drop 6． Imported france bearing with long service life Technical dataset： Model specifications blade mm Blades rotational speed rpm Motor rotational speed rpm Air flow m3/h Total pressure Noise decibels Import power Rated voltage High mm Width mm Thick mm JLF(a)-620 500 1400 960 23000 75 ≤70 550 380 7
Dairy ventilation poultry exhaust fan

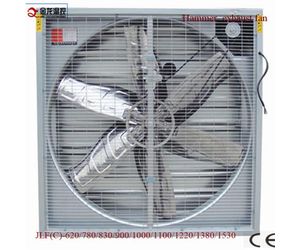

Weight balance type exhaust fan (drop hammer type exhaust fan) features:
1. Mirror designed Stainless steel balde,with big air volume,never distortion and broken, the angle of the blades is patented designed
2. Galvanized steel sheet ,the layer of galvanizations more than 180 g/?,one-off moled frame,
3. experiment of homeostasis make the blade work smoothly,nearly no noise and steadily output of air
4. Belt pulley are aluminium magnesium alloy injection moulded ,light and high-strength
5. Adopt auto belt-tensioner which can adjust the loose or tighten of belt and never drop
6. Imported france bearing with long service life
Technical dataset:
|
Model specifications |
blade mm |
Blades rotational speed rpm |
Motor rotational speed rpm |
Air flow m3/h |
Total pressure |
Noise decibels |
Import power |
Rated voltage |
High mm |
Width mm |
Thick mm |
|
JLF(a)-620 |
500 |
1400 |
960 |
23000 |
75 |
≤70 |
550 |
380 |
780 |
780 |
|
|
JLF(a)-780 |
710 |
960 |
960 |
23000 |
75 |
≤70 |
550 |
380 |
780 |
780 |
420 |
|
JLF(a)-830 |
720 |
660 |
1400 |
22000 |
60 |
≤60 |
550 |
380 |
830 |
830 |
400 |
|
JLF(a)-900 |
750 |
630 |
1400 |
28000 |
65 |
≤65 |
370 |
380 |
900 |
900 |
400 |
|
JLF(a)-1000 |
900 |
610 |
1400 |
30000 |
70 |
≤70 |
750 |
380 |
1000 |
1000 |
400 |
|
JLF(a)-1100 |
1000 |
600 |
1400 |
32500 |
70 |
≤70 |
750 |
380 |
1100 |
1100 |
400 |
|
JLF(a)-1220 |
1100 |
460 |
1400 |
38000 |
73 |
≤70 |
750 |
380 |
1220 |
1200 |
400 |
|
JLF(a)-1380 |
1250 |
439 |
1400 |
44000 |
56 |
≤70 |
1100 |
380 |
1380 |
1380 |
400 |
