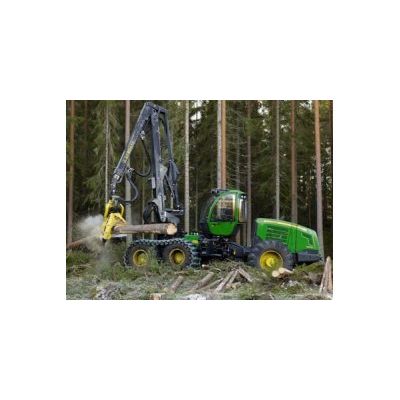

John Deere - Model 1470E - Forestry Harvester
John Deere harvesters give you mobility with big-tree strength, and work productively in both dense stands and final fellings, as well as on the hillside. No matter what model you go with, you can expect a comfortable work environment, easy maintenance, efficiency, and many productive days of work.
-
Most popular related searches
Dimensions
Length: 303 in. (7,690 mm)
Height: Transport: 155 in. (3,930 mm)
Width: With 650 Series Tires: 118 in. (2,990 mm)With 750 Series Tires: 120 in. (3,050 mm)
Weight: 45,644 lbs. (20,700 kg)
Wheelbase: 160 in. (4,050 mm)
Ground Clearance: 30 in. (750 mm)
Turning Radius: With 750 Series Tires, Outer: 261 in. (6,615 mm)With 750 Series Tires, Inner: 137 in. (3,470 mm)
Engine
Engine Type: Turbocharged, diesel
Engine Make: John Deere
Engine Model: 6090HTJ
Displacement: 9 l
Cylinders: 6
Gross Horsepower: 225 hp (190 kW) 1,900 rpm *Torque*: 920 ft. lbs. (1,250 Nm)
1,400 rpm
Cooling: Air
Fuel Tank Capacity: 115 gal. (435 l)
Drivetrain
Drivetrain
Axles: Hydromechanical differential lock at front & rear
Transmission: Hydrostatic-mechanical, 2-speed gear box
Steering: Angle: 44°
Hydraulics
Hydraulic Pump: Load-sensingSize: 12.8 ci (210 cc)
Body
Cab Controls: TimberMatic H-09
Operational
Tires: Front: 26.5-20Rear: 34-16
Boom Reach: 28.2, 32.8 or 36.1 ft. (8.6, 10 or 11 m)
