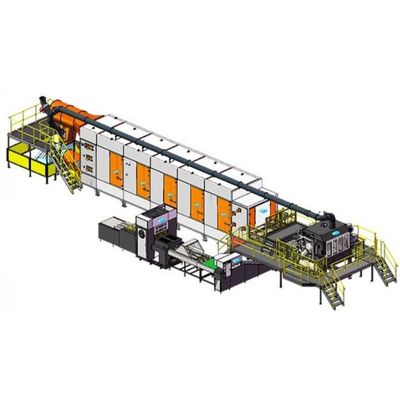

JWELL - Model IIIS -Egg Tray Molding Production Line
The Egg Tray Molding Production Line by JWELL is an industrial solution that integrates shaping, trimming, and stacking to produce uniform, high-quality egg trays. The system starts with a shaping machine that efficiently molds wet paper pulp into precise egg tray designs, utilizing customizable molds based on specific requirements. Post-molding, a trimming process refines the trays, ensuring a clean and consistent appearance. Stacking is automated, improving processing efficiency and consistency. Notably, this production line is designed for high productivity and quality, meeting international certifications such as CE, ISO, UL, QS, and GMP. The machinery aligns with European standards and boasts components from renowned brands like Siemens and Omron. The production line operates efficiently under varying conditions, with lead times differing between peak and off-peak seasons.
The integrated shaping, trimming, and stacking functions of the Egg trays – Molded hot pressing and drying production line contribute to its high productivity and the production of uniform and high-quality egg trays.
- Port: Shanghai, China
- International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
- Terms of Payment: LC, T/T
- Certification: CE, ISO, UL, QS, GMP
- Warranty: 1 Year
- Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
Egg trays – Molded hot pressing and drying production line Functions：
1. Shaping: The production line includes a shaping machine that molds the wet paper pulp into the desired egg tray shape. The machine uses molds that are customized to the specific size and design of the egg trays being produced.
2. Trimming: After the egg trays are shaped, they undergo a trimming process to remove any excess pulp or uneven edges. This ensures that the final products have a clean and uniform appearance.
3. Stacking: Once the egg trays are shaped and trimmed, they are stacked into neat piles for further processing or packaging. The stacking process is automated to ensure efficiency and consistency in the production line.
Overall, the integrated shaping, trimming, and stacking functions of the Egg trays – Molded hot pressing and drying production line contribute to its high productivity and the production of uniform and high-quality egg trays.
- Name : parameter
- Product scope : Pulp molded tableware
- Equipment functions : Integrated shaping, trimming, and stacking
- Mold size : Multiple combinations 420*360mm
- Heating of shaping plate : Thermal oil or electric heating
- Pressure of the shaping table : 60 t
- Edge cutting machine pressure : 60 t
- Product transfer method : Truss manipulator
- Maximum height of the product : MAX：400x360mm
- Yield : 4200-5400Kg/24h
