Kat Water Meter Co.,Ltd

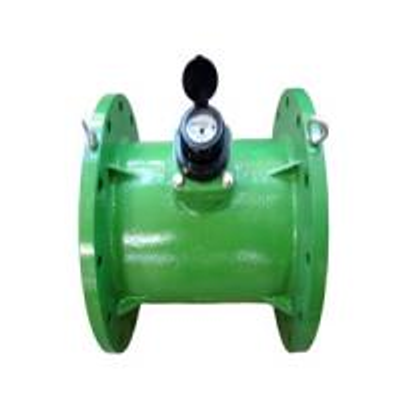

KATIrrigation Water Meter

SHARE

Magnetic transmission; Sealed dry dial register ensures clear reading; Register can rotate more than 360◦ for easily reading in any position; Cast iron or ductile cast iron body with epoxy coating; Paddle wheel design resists blockage and damage to meter from solids in water; The measuring mechanism can be removable from the body for checking, maintaining and replacing, no need to dismantle the body from the pipe; Suitable for irrigation and waste water applications.

Most popular related searches

Applications

  • Measuring the volume of cold potable water passing through the pipeline for in-plant application.

Instllation Requirem

  • The pipeline must be flushed before meter installation.
  • The meter must be installed according to the arrow direction indicated on the meter body.
  • The meter should be installed in horizontal position with dial face upwards.
  • The meter should be constantly full of water during operation.
