Duvels­dorf - Knife Roller

• High performance: working speed 15 - 20 km/h
• Optimum running smoothness due to offset knives
• Contact pressure individually adjustable
• Hydraulic fold up at any time

• Working width: 6,3
• Rings: Kronenring 450 / 500
• Total weight
  • Without seeder: 5.100 kg
  • With seeder: 5.480 kg
• Axle load
  • Without seeder: 5.100 kg
  • With seeder: 5.480 kg
• Air brake system
• Yes
• Tires: 500 / 50 - 17
• Knife roller Ø
• 365 mm
• Knives throughout diameter: 8 Stück
• Theoretical cutting length
• 143 mm
• Working speed: 15 - 20 km/h
• Necessary power: 160 PS

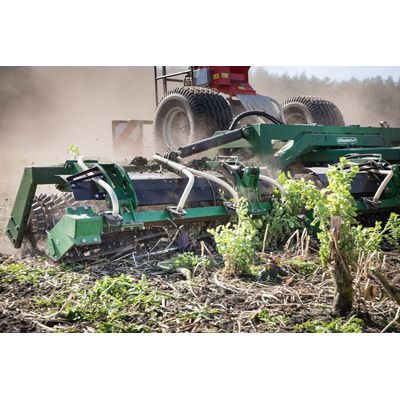

Whether for controlling borers in maize stubble or shredding catch crops: The powerful knife roller for the TERRA.ROLLER expert optimally cuts up plant residues.

Functional rubber mounts on the sides absorb minor impacts and vibrations. Ground hugging is achieved via the pre-tensioned hydraulic cylinders, the pressure of which can be individually adjusted.

To ensure a long service life, the knives, which are made of hardened drill steel, are equipped with a cutting edge on both sides. This doubles the service life, as the individual blades can be turned quickly and easily.

Cutting, crushing, breaking up - the knife roller as the preliminary tool of the TERRA.ROLLER expert shreds plant residues reliably and efficiently with its 8 rotating knives. The trailing crown rings then work the biomass cleanly into the soil.

In conjunction with a düvelsdorf seeding unit, the range of tasks performed by the TERRA.ROLLER expert with knife roller can be increased even further.

The catch crops, which are spread in one work step, are easily worked into the soil by the knife roller and then pressed down.
