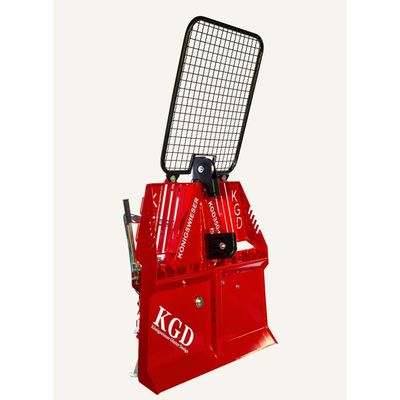

KönigswieserModel KGD 35 M -Mechanical Forestry Cable Winch

SHARE

The ideal cable winch for small forest owners with a pulling force of 3.5 tonnes. Due to the narrow back blade, the Königswieser KGD 350 cable winch is suitable for small tractors from 15 hp. Despite its low weight, the ‘small’ forestry cable winch impresses with a very robust, powder-coated all-steel construction and a low-maintenance chain drive. Ideal for clearing timber in farm forests! Comes as standard with lower rope infeed, trailer coupling, dead man’s brake, protective grating and support feet. Safety precautions in accordance with ÖNORM L 5276, built in accordance with CE regulations, supplied with associated declaration of conformity

Most popular related searches
  • Tractive power below : 3.5 to
  • Tractive power top : 2.2 to
  • Medium rope speed : 0.9 m/s
  • Max. Rope socket :
  • Ø 8 mm : 85 m
  • Ø 9 mm : 60 m
  • Ø 10 mm : 50 m
  • Weight without rope : 239 kg / 253 kg
  • Shield width : 1’000 mm / 1’200
  • Total height : 2’050 mm
  • Cultivation category : I + II
  • Recommended tractor power : from 15 PS
