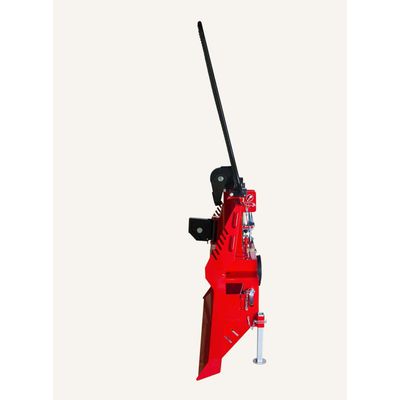

Königswieser - Model KGD 55 M -Mechanical Forestry Cable Winch

Thanks to the reduction drive, the load is pulled in slowly and more power is generated with less tractor power. The retraction position of the rope guarantees perfect winding at any rope length. Ideal for thinning and felling heavy timber. The forestry cable winch with 5.5 tonnes of pulling force is the entry-level model for professional timber harvesting. Hardened sprockets, a reinforced drive chain and solid steel struts and much more guarantee the highest quality! It goes without saying that our cable winches are powder-coated inside and out.

With lower rope inlet, reduction gear, trailer coupling, dead man’s brake, protective grille and support feet as standard.

Safety precautions in accordance with ÖNORM L 5276, built in accordance with CE regulations, supplied with associated declaration of conformity

• Tractive power below : 5.5 to
• Tractive power top : 3.3 to
• Medium rope speed : 0.6 m/s
• Max. Rope socket :
  • Ø 8 mm : 160 m
  • Ø 9 mm : 135 m
  • Ø 10 mm : 100 m
  • Ø 11 mm : 80 m
  • Ø 12 mm : 70 m
• Weight without rope : 386 kg
• Shield width : 1’500 mm
• Total height : 2’300 mm
• Cultivation category : I + II
• Recommended tractor power : from 50 PS
