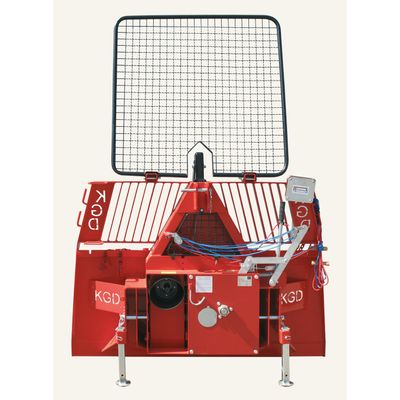

Königswieser - Model KGD 65 M -Mechanical Forestry Cable Winch
The robust steel construction with a blade width of 1.7 m makes this Königswieser forestry cable winch particularly suitable for demanding timber harvesting with heavy tractors from 60 hp. 6.5 tonnes of pulling force combined with a reinforced frame construction and high-quality drive components ensure trouble-free operation. The optimal space ratio of the drum to the upper deflection pulley ensures excellent spooling quality in every rope layer. The rope drum has a large outer diameter for a corresponding rope capacity.
With lower rope inlet, reduction gear, hitch, dead man’s brake, protective grille and support feet as standard.
Safety precautions in accordance with ÖNORM L 5276, built in accordance with CE regulations, supplied with associated declaration of conformity
- Tractive power below : 6.5 to
- Tractive power top : 4.1 to
- Medium rope speed : 0.6 m/s
- Max. Rope socket :
- Ø 8 mm : 200 m
- Ø 9 mm : 170 m
- Ø 10 mm : 125 m
- Ø 11 mm : 100 m
- Ø 12 mm : 90 m
- Weight without rope : 433 kg
- Shield width : 1’700 mm
- Total height : 2’300 mm
- Cultivation category : I + II
- Recommended tractor power : from 60 PS
