Kopar Oy
Kopar - Steam Heated Rotary Dryer
FromKopar Oy
The indirect steam heated rotary type dryer for abrasive materials is supported on the rollers and driven by the pinion and girth gear. The steam pipe construction inside the dryer is patented.
Most popular related searches
The large heating area in one single unit makes it possible to have also extensive drying capacity in one unit. A spare dryer is not needed any more.
Process:
- Final moisture content can be achieved with lower temperatures
- Low drying temperature
- Low concentrate temperature
- Less SO2 contaminations
- Low exhaust gas amount
- Easy control
- High loading degree
Construction:
- Co-rotating steam pipes, less mechanical wear of steam tubes
- No pressurized pipe in supporting contact
- No massive construction inside the dryer
- Less steam distributing hoses
- Easy maintenance
- High heat area to drum volume ratio
- Low length to diameter ratio

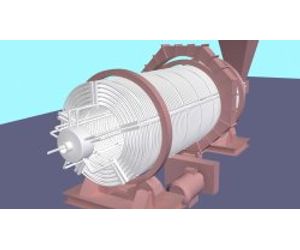

The steam pipe arrangement is patented (in the picture piping is shown without shell). Steam is distributed into pipe sectors at the discharge end via rotary joint.
Condensated water comes out through the same passage due to the small inclination of the dryer.
