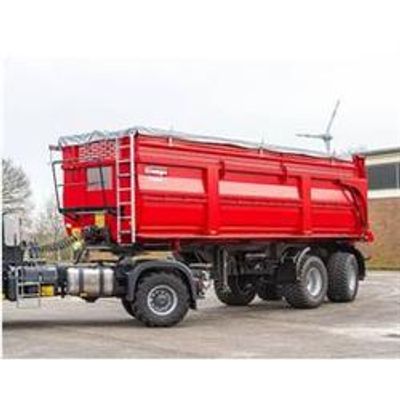

Krampe - Model KS 900 - Double-Axle Tipping Semi Trailers
From Double-Axle Tipping Semi Trailers
Catering for customers who own an agricultural truck, the new Krampe KS 900 tandem semi trailer tips to the rear and to one side. These heavy-duty trailers run on flotation tyres and give a hitch height of 1,350 mm to 1,580 mm. They will certainly become a familiar sight in Europe on roads and fields in the next few years.
-
Most popular related searches
Products Details
Courtesy of its high payload of up to 26 t, this off-road semi trailer also hitches to a tractor via a dolly to support the haulage chain in the heat of harvest, offering a 9 m long Big Body with a volume of 46.9 m³.
The off-road axles benefit from stronger beams as well as 10 t wheel bearings to take on large-diameter tyres. Another standard specification is the air-suspended chassis, which results in very quiet and comfortable running and increased road safety. During tipping the chassis lowers automatically for added stability. Whether laden or unladen, the standard-fit levelling valve ensures optimum suspension in any situation.
Technical Data
- GVW to Ger. Law 32.000 kg (techn. 34.000 kg)
- fifth wheel load 12.000 kg (techn. 14.000 kg)
- axle load 20.000 kg
- dead weight (without container) ca. 7.800 bis 9.800 kg (ausrüstungsabhängig)
- payload to Ger. law ca. 24.200 kg
- drawbar 2' Königszapfen
- standard supporting device 24 t Kurbelstützen
- oil requirements/ tip angle to the rear 60 l/ 48°/ 200 bar
- braking system EBS Bremssystem EBS-Anlage 2S/2M
- brake dimensions Scheiben- oder Trommelbremse
- track width 2.040 mm (2.150 mm)
- wheel bearing load rating per axle 10 t bei 105 km/h
- running gear luftgefedert, inkl. Heben + Senken
- wheel base 1,81 m
- internal body dimensions 9,00 x 2,32/2,22 x 1,52 m
- body height without silage kit 1,52 m
- transport capacity without silage kit 30,3 m³
- transport capacity with silage kit 60 cm 42,2 m³
- transport capacity with silage kit 80 cm 46,1 m³
Dimensions
- body length L 9,00 m
- body width 2,32/2,22 m
- body height H 1,52 m
