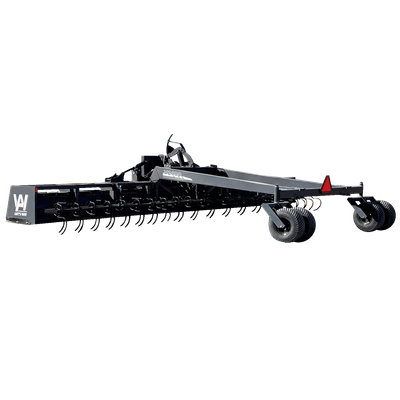

Arts Way - Model V2400 -Land Plane
The V2400 Land Plane is a specialized piece of dirt work equipment engineered for efficient land preparation. It features a robust 24 ft blade suited for various leveling and grading applications. With a weight of approximately 3,900 lbs, it ensures stability during operation. The machine can be equipped with single wheels weighing 250 lbs or dual wheels at 475 lbs, depending on the terrain and specific operational requirements. This land plane is designed to handle a maximum load of 4 cu. yd. and is recommended for use with tractors providing 150-180 hp. A key feature of the V2400 is its patented floating hitch system, which offers enhanced maneuverability and adaptability across different work settings. Optional enhancements are available for tailored functionality. Ideal for both agricultural and construction sectors, this equipment delivers precision and durability for professional-grade land maintenance.
- Folding Wings
- 24′ Blade Width
- 22″ Blade depth
- 4-1/2″ Diameter depth control cylinder
Weight - Main Bundle: 3,900 lbs.
Weight - Tires: 250 lbs. – Single Wheels, 475 lbs. – Dual Wheels
Weight - S-Tines: 1,000 lbs.
Blade Width: 24 ft.
Blade Depth: 22 in.
Blade Capacity: 4 cu. yd.
Effective Leveling Length: 30-35 in.
Transport Width: 12 ft.
Transport Ground Clearance: 12 in.
Depth Control Cylinder Diameter: 4-1/2 in.
Horsepower Requirement: 150-180 hp
Hitch: Patented Floating Hitch
S-Tines: Optional
