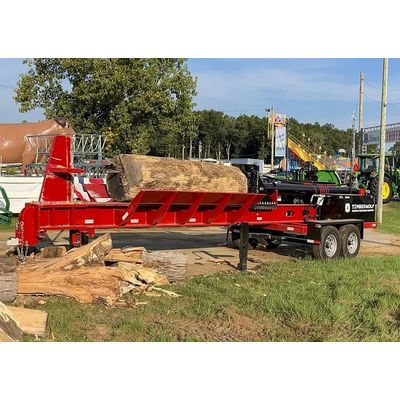

Timberwolf - Model TW-10 - Large Log Splitter
The TW-10 is an extra large log splitter that splits logs as long as 12` and up to 5` in diameter, into quarters, so they can be fed into a wood chipper or firewood processor.
Most popular related searches
log splitter
log splitting
firewood processor
wood chipper
firewood machine
chipper wood
firewood
lumber
firewood production
log splitter machine
- With a 30’ long frame, the TW-10 is not your typical log splitter, but this firewood machine isn’t made for run-of-the-mill splitting. The lumber processor can handle logs as wide as 5` in diameter and as long as 12’, and will split them into quarters that can be fed into a wood chipper or firewood processor.
- The diesel log splitter’s monster frame is 3” thick all around, so it will be able to handle years worth of large lumber and continue splitting for years to come. The TW-10 log splitter also features dual 7,000-pound axles for maximum stability.
- Such a large log splitter needs a lot of power to back it, and that is what we did with the TW-10. It is powered by a 74 HP Hatz diesel engine and uses an 8” cylinder with an 8’ stroke, offering 150,000 pounds of splitting force. The diesel log splitter has a pump flow of 33 GPM and is capable of cycling the cylinder every 54 seconds.
- All of these specs make up a single quality that the TW-10 log splitter is built around: maximum power.
- Best of all, Timberwolf`s biggest log splitter is operated by a remote control, so you can split logs from the cab of your truck - but you might want to get a little closer to watch this massive log splitter in action.
- Engine Power (HP): 74
- Pump Flow (GPM): 33
- Stroke (ft): 12
- Cylinder Bore (in): 8
- Splitting Force (lbs): 150,000
- Cycle Time (sec): 54
- Weight (lbs): 13,640
