DEZ NOVIN SANAT - Laser land leveler control system

SHARE

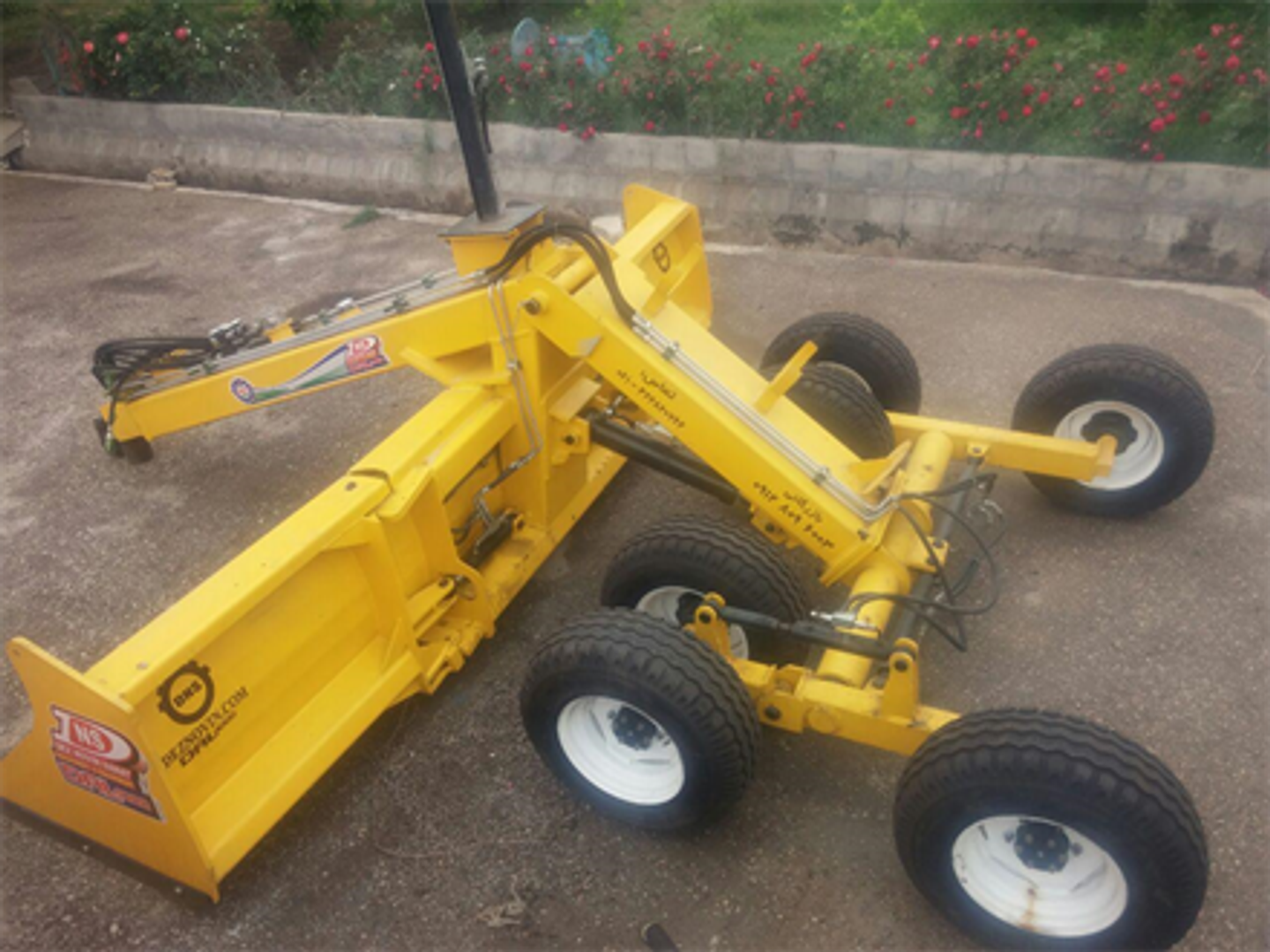

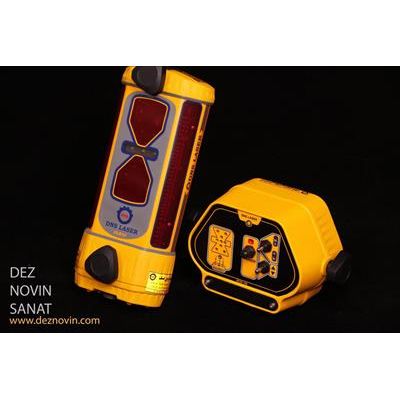

We are laser land leveling control systems manufacturer. our product "professional DNS " is a machine control system which is designed for use in jobsite by heavy duty machineries used for earth moving applications such as Scrapers, Levelers and Trenchers. Through operation, professional DNS provides the operator a manual or automatic control of the blade relative to a laser beam of a rotating laser which results in accurate filed leveling. professional DNS consists of water and dust proof components which are capable of successful operation in any environmental condition and with any laser transmitter type.
Most popular related searches
laser land leveller
land leveler
folding land leveller

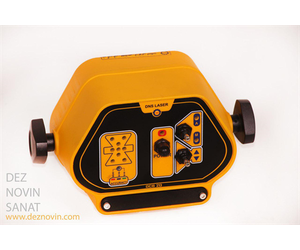

brand:DNS
Model number:DCB20

Operating Voltage:10Volts to 40 Volts DC
Valve Compatibility :Proportional Time (On/Off)
Maximum Current:10 Amps per Coil


Electrical Connection:Standard Military Type


Remote Toggle Switch  (Optional):Auto & manual


Weight:2.235 kg


Dimension:178mm x 134 mm x 120 mm


Accuracy control LED:

Fine: green

Medium: blue

Coarse: red

Water and dust proof:IP 68
Hydraulic output with short circuit protection:yes
Able to control the speed of the blade:yes
Attachable to all hydraulic systems:yes

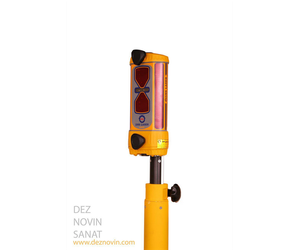

Brand:DNS

Model number:DLR55

LED display:Green/red/orange

Operating range:1500 m diameter (depends on laser transmitter)

Laser detecting accuracy:2mm

Laser sensors:132 pcs


Settings:

Fine: ±2mm

Medium: ±10mm

Coarse: ±20mm

Operating: -40°C to +71°C

Operating temperature Storage:  -55°C to +85°C

Laser reception height:205 mm

Laser Beam Acceptance Angle:360°

Electrical Connection:Standard Military Type

Weight:2.3 kg

size:
Length:315 mm

Width: 140 mm

Depth :80mm

Water and dust proof:IP 68

Receiver equipped with stand less steel clamp:yes

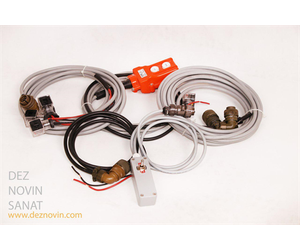

Brand:DNS

Model number:cables

Length : 4.5 to 8 meter

Material:Tin alloyed cooper, foiled and shielded cables

Electrical Connection:Standard Military Type
