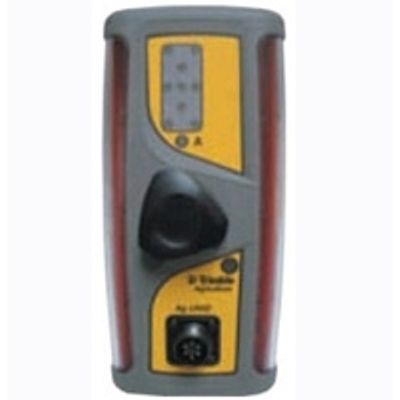

SPL - Model LR40 - Laser Plain Receiver
This automatic blade control system is used on agricultural drainage and land levelling machinery to automatically control the blade in earth moving and grading and applications. An Lr 40 Laser Receiver mounts above the cutting edge of the blade.
Most popular related searches
land leveler
folding land leveller
precision agriculture
agriculture control system
precision agriculture control
agriculture land drainage
agriculture land
- Designed for vehicles pulling scrapers or drainage machines requiring connection with a PT valve
- Operates with a single rigid mast
- Configures with the CB40 control box and the LR40 laser receiver
- Vertical Reception:170mm (6.75)
- Laser Beam Accep.Angle:360°
- Electric Input:10-30 V DC.
- LED Display:Red = Hi / Low, On Grade = Green.
- Out of Beam Indication:High and Low.
- Operating Temperature:-20° C to + 70°C (-40°F to 140°F).
- Dimensions:244 x 111W x 47Dmm.
