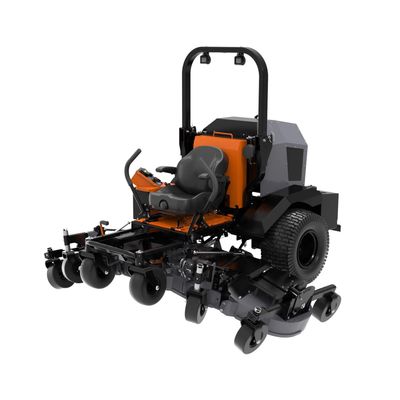

Lastec - Model WZ800 - Commercial Zero Turn Mower

SHARE

Four things set the Lastec WZ800 Articulator apart from any other mower on the planet. First, the zero turn mower cuts 100” of grass. Second, it cuts that wide with the accuracy of a 21” push mower. Third, the WZ800 can fold the outer decks with ease, reducing the transport width to 78”. Fourth, it can safely trim closer to ponds, banks and other obstacles than other mowers with it’s 21” outside deck side reach. Tough enough for Commercial applications without compromising cut quality.

Most popular related searches

zero turn mower

commercial mower

100" Flex Deck Zero Turn Wide Area Mower

37HP Kubota® Tier 4 3-cylinder, naturally-aspirated, liquid-cooled diesel engine
100" Cutting Width
Five flex decks with up to 24° of total up/down motion
13.5" Side reach, reduces hand mowing and trimming near ponds, ditches or banks.
7.27 acres per hour
Outer decks fold for a 78" transport width
Tool-free deck height adjustment from 1" to 4-1/2"
Side, rear, and mulching discharge capabilities

Premium Cut Quality

Lastec flexing decks provide a premium quality of cut throughout the entire width of cut from wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

When you need to avoid the sun’s heat and damaging rays, our sunshades s are more than a convenience, they’re a necessity. Designed to install quickly, with no drilling. And they’re built with quality materials that repel the sun’s harmful UV rays for years to come.

Provides sun protection for operating comfort
Tough, acrylic-coated polyester
Lightweight, durable aluminum frame
Clamps to roll bar without drilling

Fits WZ1000, WZ800, WZ600, WZ400. Lastec part #067086. Call dealer for pricing.

P128 High-Lift Blade
P246 Low-Lift Blade
P322 Gator Mulching Blade
063265 Ultra Low-Lift Blade

DIMENSIONS

Length 92”
Width (mowing) 119”
Width (transport) 78”
Height (ROPS up) 82”
Height (ROPS down) 57”
Unit Weight 3,340 lbs
Wheelbase 54”
Rear Track 60”
Frame Construction Fully Welded, 1.5"x3"x3-16" Structure Tubing

ENGINE

Type Kubota® D1803-CR-E4B 3-cylinder, naturally-aspirated, liquid-cooled diesel
Emissions Level EPA Tier 4 final, stage IIIB
Rated Horsepower 37.6 hp (SAE J1995)
Displacement 111.4 cu. in.
Engine Controls Digital
PTO Warner 300 ft-lb Clutch w/ Magnetic Brake
Air Cleaner 6” dual element, dry cartridge
Cooling System Type Pressurized radiator, forced circulation with water pump
Alternator Capacity 12V, 60A
Oil System Type Forced lubrication by trochoid pump
Oil Capacity 1.85 U.S. gal
Oil Filter Type Full-flow, replaceable spin-on type
Fuel Capacity 13.5 gallons, dual 6.75 gallon self-leveling tanks

TRACTION SYSTEM

Max Forward Speed Infinitely Variable - 10mph (16.09 km/h)
Max Reverse Speed Infinitely Variable - 3mph (4.83 km/h)
Wheel Motors Parker 477cc TF Series
Drive Pumps Hydro-Gear* PW Series
Front Tires 13 x 6.5-6, smooth, semi-solid
Rear Tires 26x12-12, 6-ply, turf tread
Parking Brake Lever Actuated, 2 mechanical drum-type on rear wheels
Steering Dual-lever hydrostatic differential type with rear wheels
Hydraulic Oil Filters Full-flow, replaceable spin-on type
Hydraulic Oil Cooler Pressurized, forced-air

CUTTING DECK SYSTEM

Cut Width 100" (2.54m)
Cut Width (Feet) 8`4" (2.560m)
Discharge Options Side, Rear, and Mulching Discharge Capabilities
Curb clearance in inches 4.5"
Blade Spindles 3- Cast Steel Spindle Assemblies, Utilizing 3 Sealed Bearings Each
Blades Five 21” High Lift
Belts Double Envelope Kevlar Main Drive & Deck Belts
Deck Segments 5- 21” decks with 5.5” deep , fully welded articulating pans
Deck Construction 3/16"x1/2" (4.76mmx127mm) Solid Steel Bar Leading Edge
Height of Cut Range 1”-4-1/2” in ¼” increments
Height Adjustment Manual with spacers (9 adjustment points)
Acres per Hour 7.27 (assumes 10% overlap, no stops, and average speed of 8 mph)
Transport Lift Type Electric-over-hydraulic actuators
Deck Caster Wheels Eight 11 x 4-5, smooth, no-flat
Deck Thickness 3/16 7ga.
Deck Leading Edge 1/2"x1/4"
Blade Length 21" (53.3cm)
Articulation p/m 12 degrees
Height of Cut Change- Timing 5 min
Height of Cut Change- Tools required None
Height of Cut Change- Person`s Required 1
# of Decks 4
Number of Grass chutes 1,3(rear)
Discharge Capability Side, Rear, Mulching
Bearing/Spindles 4
Pulleys(Cast or Split) Cast
Tires 10 (2 pneumatic)
Rows of fixed wheels 3
Hydraulic Cylinders 2
Hydraulic Connections 16
Hydraulic Manifold 0
Hydraulic Fluid Capacity 5 quarts
Pulleys 14
Blade Tip Speed 18,500 FPM (approximate)
Number of Belts 5
Size of Belts 5
3" Back-Bend Idlers 4
1/4 Turn Belt Twists 2
Spring Loaded Idlers 1
Grease Points 20
Steer/Stick Stick
Seat (High-Back/Mid-Back) Deluxe High-Back, with Arm-rests
Seat Suspension Air-Ride
4WD/ 2WD 2WD
Belt or Hydro Drive Belt
