Deines - Model 1850 OHV - Lawn Mower

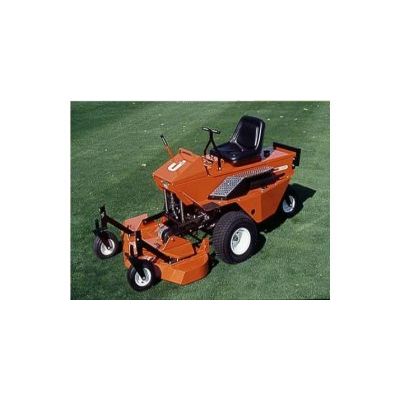

The Deines OHV Series Mower features the Eaton hydrostat transmission with a chain reduction system. This is one of our most popular tractors for every mowing application. This tractor series is simple to use and easy to maintain. The hydrostat transmissions are an Eaton Model 6, fan cooled and there is one for each drive wheel. The chain reduction system is easy to access, and maintain. As an added feature it has adjustable idler shafts to maintain correct chain tension. The OHV Series uses the 18hp and 20hp Kohler Command overhead valve engines.
Engine
- Kohler Command 18HP, CH620-3039
- Overhead Valve Design
- Hydraulic Valve Lifters
- Electronic Ignition
- Dual Element Air Cleaner
- Closed Breather System
- Full Pressure Lubrication
- Large Capacity In-Line Fuel Filter
- Full Flow Oil Filter
- Dual Oil Drain
- Variable-Speed Governor
- Fuel Shutdown Solenoid
- Self-relieving Smart-Choke Carburetor
- Pulse Fuel Pump
- 12-Volt Shift Starter
- 20 Amp Alternator
Hydrostatic Transmission
- Eaton Model 6, 2 Per Machine
- Chain Reduction System
- Turning Radius Zero Degree Right & Left
- Speeds Infinite Variation From 0-7 MPH
Fuel Tank
- 5 Gallon Capacity, EPA Approved with
- Evaporative Emission Port Connected to EPA
- Approved Carbon Canister.
Wheels
- 8” Disc Type
Drive Tires
- 2-Ply, Pneumatic 18-8:50 x 8 Turf Saver Tires,
Rear Tire Size
- 2-Ply, Pneumatic 15-6:00 x 6, Tubeless Tires
Steering
- 2 Levers, One For Each Wheel
Engaging System
- Electric Clutch
Deck Lift
- Manual Deck Lift
Net Weight
- 725 Pounds
Height
- 41.5 Inches
Length
- 68 Inches
Width
- 43.5 Inches
Options
- Dual Tail Wheel Assembly
- Deluxe Seat, with High Back and Arm Rests
- Seat Suspension For Standard Seat
- Electric Lift
- Snow-blower
- Snow Removal Blade
- Vacuum Collectors
Deck Material
- 11 Gauge Steel
Spindle Housing
- 1 leavy Duty Ductile Iron
Blades & Material
- 3 Each, 17" x 2" x 3/16"
- Heat Treated, Passes 90 Degree Bend Test
Rear Deck Gauge Rollers
2 Each, 3" Diameter x 7" Hard Plastic
Cutting Adjustment
- 1" - 4", Set by Adjustable Gauge Wheels & Rear Gauge Rollers
Spindle Shafts
- 3 Each, 7/8” Diameter Tooled Steel
Gear Box
- Superior, Heavy Duty, 90 Degree Gear
- 1:1.1 Ratio Double Bearing
Front Gauge Wheel
- 2 Each, Pneumatic 11-4:00 x 5, 2 Ply Rib
- Tubeless
Width of Cut
- 49 Inches
Width With Grass Chute
- 57 Inches
Overall Length of Deck
- 28 Inches
Deck Offset (Trim Side)
- 1 Inches
Cutting Deck Weight
- 197 Lbs
Optional Equipment
- Baffle Kit, Vacuum Collectors,
- Heavy Duty Blades, Gator Blades
