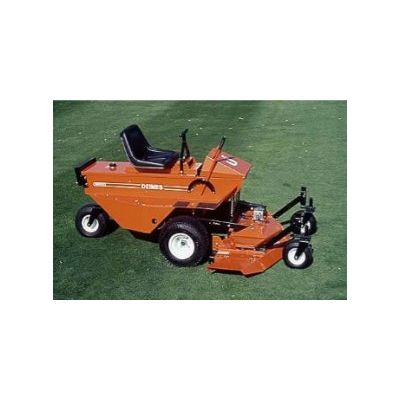

Deines - Model 1860 HT -Lawn Mowers
The Deines HT Series Mowers features include two Hydro-Gear pumps and two Ross MF-16 Wheel Motors. The use of these components eliminates the need for any mechanical speed reduction within the ground drive system. Power is transmitted from the pumps through cadmium plated, flanged steel lines to the wheel motors using no rubber hoses. All hydraulic adapters are the o-ring type in order to eliminate leaks. The wheel motors will tolerate a maximum of 1,000 pounds load per wheel. There are no mechanical reduction devices such as gear boxes or roller chain sprockets on the HT Series, therefore it is an all hydrostatic unit. Hydrostatic oil capacity is three US gallons which was designed into the system to eliminate the need for troublesome heat exchangers and allow the system to remain cool and clean in tough, hot and dirty conditions.
- Kohler Command 18HP, CH620-3039
- Overhead Valve Design
- Hydraulic Valve Lifters
- Electronic Ignition
- Dual Element Air Cleaner
- Closed Breather System
- Full Pressure Lubrication
- Large Capacity In-Line Fuel Filter
- Full Flow Oil Filter
- Dual Oil Drain
- Variable-Speed Governor
- Fuel Shutdown Solenoid
- Self-relieving Smart-Choke Carburetor
- Pulse Fuel Pump
- 12-Volt Shift Starter
- 20 Amp Alternator
Transmission
- Hydro-Gear Pumps
- Speeds Infinite Variation From 0-7.5 MPH
- 3 US Gallon Reservoir Capacity
Fuel Tank
- 5 Gallon Capacity, EPA Approved with
- Evaporative Emission Port Connected to EPA
- Approved Carbon Canister.
Wheel Motors
- Ross Wheel Motors, 2 Per Machine
Drive Tires
- 2-Ply, Pneumatic 20-10:00 x 10 Turf Saver Tires
Parking Break
- Band & Drum Type
Rear Tire Size
- 2-Ply, Pneumatic 15-6:00 x 6, Tubeless Tires
Steering
- 2 Levers, One For Each Wheel
Turning Radius
- Zero Degree Right & Left
Engaging System
- Electric Clutch
Deck Lift
- Manual Deck Lift
Net Weight
- 725 Pounds
Height
- 44 Inches
Length
- 70 Inches
Width
- 47 Inches
Options
- Dual Tail Wheel Assembly
- Deluxe Seat, with High Back and Arm Rests
- Seat Suspension For Standard Seat
- Electric Lift
- Snow-blower
Deck Material
- 11 Gauge Steel
Front Gauge Wheel
- 2 Each, Pneumatic 11-4:00 x 5, 2 Ply Rib
- Tubeless
Spindle Housing
- Heavy Duty Ductile Iron
Width of Cut
- 58 Inches
Blades & Material
- 3 Each, 20.75” x 2” x .25”
- Heat Treated, Passes 90 Degree Bend Test
Width With Grass Chute
- 69 Inches
Rear Deck Gauge Rollers
- 2 Each, 3” Diameter x 7” Hard Plastic
Overall Length of Deck
- 32 Inches
Cutting Adjustment
- 1” - 4”, Set by Adjustable Gauge Wheels
- & Rear Gauge Rollers
Deck Offset (Trim Side)
- 8.5 Inches
Spindle Shafts
- 3 Each, 1” Ground & Polished Stressproof
Cutting Deck Weight
- 280 Lbs
Gear Box
- Superior, Heavy Duty, 90 Degree Gear
- 1:1.1 Ratio Double Bearing
Optional Equipment
- Baffle Kit, Vacuum Collectors,
- Heavy Duty Blades, Gator Blades
