Longer Food Machinery Co.,Ltd (LFM)

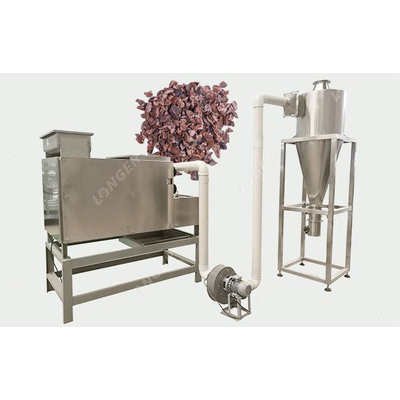

LFM -Â Model LG-BQ200A -380V Cocoa Bean Cracker and Winnower Machine
The cocoa bean cracker and winnower machine is mainly used for crushing and peeling cocoa beans, and then getting clean cocoa nibs. It is the necessary machine in the cocoa bean processing plant. This cocoa bean cracking machine has high automation, high peeling rate and no pollution to the environment.
Most popular related searches
- Material: Cocoa bean
- Capacity: 300-500 kg/h
- Loading Port: Qingdao Port
- Description: The cocoa cracker and winnower machine has 90% peeling rate and low waste rate of raw materials. Best cocoa bean skin peeling equipment.
Structure of 380V Cocoa Bean Cracker Machine:
Hopper --- Feeder vibrating screen --- Rubber roller device --- Vibrating screen structure and Specific gravity separation structure.
- Cocoa beans should be roasted first and then cooled.
- The skin of cocoa beans can be removed by extruding and twisting cocoa with three rubber rollers.
- The cocoa skin is separated by a low-pressure fan during vibration and transportation.
- The cocoa beans break when squeezed and are separated by a vibrating screen.
- The peeling rate of cocoa beans is high, up to 90%.
- The peeled cocoa beans are beauty, low materials consumption.
- Fan can remove the cocoa bean skins, and it has no pollution to the environment.
- Vibrating screen can separate cocoa beans effectively and cleanly.
- Reasonable structure, low noise, save energy.
- Power : 1.5kw+0.75kw
- Voltage : 380V/50HZ
- Capacity : 300-500kg/h
- Dimension : 1800*750*1300mm
- Weight : 550kg
