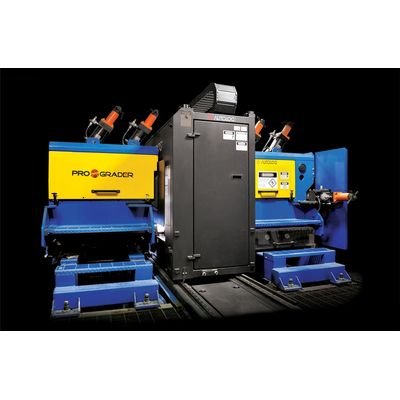

ProGrader - Linear Lumber Grading Optimizer System
Our ProGrader is a linear optimizer designed to fully automate the grading process of dressed lumber at the planer.
Most popular related searches
lumber grade
lumber grading
lumber
grain pneumatic
lumber grading system
grain monitoring
lumber production
lumber product
The ProGrader is a complete optimization system for automated lumber grading. It is positioned just after the planer and allows replacing a part or all of the positions of the traditional graders. This equipment is reliable, constant and fast, allowing many of our clients to benefit from a return on investment in less than a year.
- Operating speed up to 3,000 ft/min
- Linear system: compact, reliable, tried and tested
- 3D geometric sensors measure dimensions, skip, wane, holes and warp
- 2D vision sensors measure knots, rot, splits and shakes, bark, etc.
- Tracheid sensors measure slope of grain
- Pneumatic board stabilization system allows for unmatched reading precision
- Can be linked to a stress rating machine (MSR) and/or a moisture meter
- Automatic positioning of all the sensors with a production change
- A control module called LTS (Linear Tracking System) provides detailed and precise information on the monitoring and synchronization of the boards according to their position, the space between them and the speed of the production line
- An integrated oscilloscope improves calibration precision and reduces maintenance intervention delays
- Not affected by temperature variations (auto calibration)
- Classifies appearance decking patio lumbers (Best face vs Reverse Face)
- Cut-in-two can be achieved with appearance grade products with one piece upside down from the other
- New generation hardware allows reducing the number of computers by 30%
- Board tracking system for analysis and quality control went from 150,000 to 25,000,000 boards (option)
- Remote user interface tablet available
- 2D vision sensors using tri-linear CCD technology (100% color resolution) at 27,000 images/second
- High power white LED lighting (100,000 hours life expectancy)
- Able to process all dimensions between 1” x 3” to 6” x 12” in all lengths
- Controls the amount of below grade per package
- Reduces your above grade
- Improves your high grades ratio
- Reduces trim loss
- UV printing code and UV reading code on a simplified interface
- Increases profits per MBF produced
