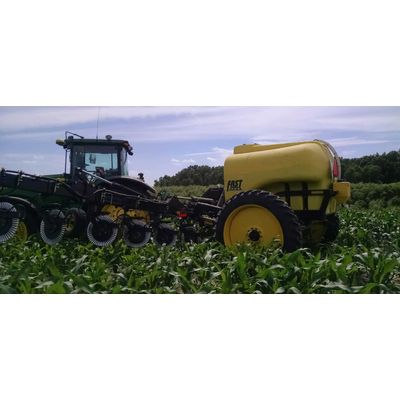

Fast Ag Soluitons - Model 8000N Vertical Fold -Liquid Fertilizer Applicators

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Sloped sump tank design assists in maximum clean-out
• Choose from 2 tank capacities: 1,050 or 1,350 gallons
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Option to choose John Blue ground drive pump
• Option to substitute 380/90R46″ tires on the 1350-gallon model
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• 7″x7″ tube toolbar can be used at 30′ or 40′ width
• External hydraulic fold cylinder enables operator to fold in the toolbar at 40’ and still use it at 30’
• Trademarked Hydraulic Wing Kick feature engages when turning on headlands, tilting the wings up, resulting in less crop damage
• High clearance on the coulters helps prevent crop damage during turns
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• High-flex toolbar promotes better ground penetration, even depth control, and consistent fertilizer placement in uneven terrain
• Two-gauge wheels help achieve more consistent application across toolbar

FAST Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

• Transport Height : 12’8″ (15 coulters)
• Shipping Transport Width : 12′
• Working Transport Width : 15’0″
• Transport Length : 15’3″
• Empty Weight (lbs.) : 8,100 (1350 gallon, 15 coulters)
• Hitch Pin-to-Axle Length : 12’0″
• Tank Size(s) (gal) : 1050, 1350
• Toolbar Size(s) : 30′, 40′
• Standard Tires : 13.6×38″ (1050 gal) 320/90R46″ (1350 gal)
• Delivery Type : Knife or Injection
• Toolbar Crop Clearance (in field position) : 27.5″
• Std Hydraulic Pump : Ace 150-206F
• Toolbar Tube Size : 7″x7″ single bar
• Hydraulic Down Pressure : Yes
• Hydraulic WingKick : Yes
• Engine HP Required : 150-180
• Quick Fill Size : 2″

• Fast Crop Defender™ – Bolts to the back of the coulter to collect displaced soil from the coulter blade and prevent it from being “thrown” out towards the crop. Only an option with Straight Stream injection nozzles, not knives
• Variable Rate Tips – Provides flexibility and convenience when utilizing prescriptions or when changing rates from field-to-field
• ISO-ready connection integrates with your in-cab ISO display (John Deere 2630, CNH AFS Pro 700, others), giving you control over application rate, section and swath, mapping, material monitoring and more
