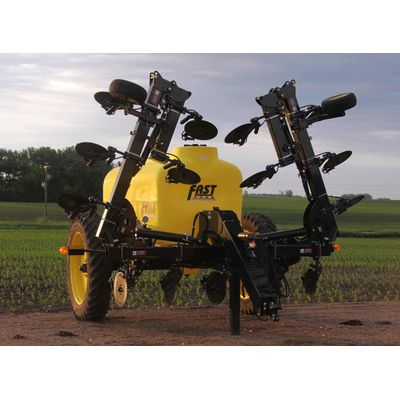

Fast Ag Soluitons - Model 8300 - Liquid Fertilizer Applicators

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Excellent axle adjustability
• Choose from 4 tank capacities: from 1050, 1350, 1800, or 2400 gallons
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
• Dual-wheel capable with three axle width options
• High crop clearance
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• Flexible Row Spacing Options – 10” to 40”
• 7″x7″ single tube toolbar used on 20″-40″ coulter spacing
• 5″x7″ double tube toolbar used in 10″ and 15″ coulter spacing (only available with a 1800 or 2400 gallon tank)
• External hydraulic fold cylinder enables operator to fold in the toolbar at the maximum length and still use it at the lesser length
• Trademarked wing kick feature engages when toolbar is lifted up, tilting up the outer wings, resulting in less crop damage
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• Flexing toolbar promotes better ground penetration, even depth control and fertilizer placement in uneven terrain
• Two-gauge wheels help achieve consistent application across toolbar

Fast Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

• Transport Height : 14’6″
• Shipping Transport Width : 12’9″
• Working Transport Width : 16’6″
• Transport Length : 17’4″ (1050 & 1350 gal) 21’1″ (1800 & 2400 gal)
• Empty Weight (lbs.) : 8,320 (1350 gallon, 15 coulters)
• Hitch Pin-to-Axle Length : 13’1″ (1050 & 1350 gal) 15’9″ (1800 & 2400 gal)
• Tank Size(s) (gal) : 1050, 1350, 1800, 2400
• Toolbar Size(s) : 30′, 40′, 44′
• Standard Tires : 380/90R46″
• Delivery Type : Knife or Injection
• Toolbar Crop Clearance (in field position) : 27.5″
• Std Hydraulic Pump : Ace 150-206F
• Toolbar Tube Size : 7″x7″ single bar
• Hydraulic Down Pressure : Yes
• Hydraulic WingKick : Yes
• Engine HP Required : 150-180
• Quick Fill Size : 2″
