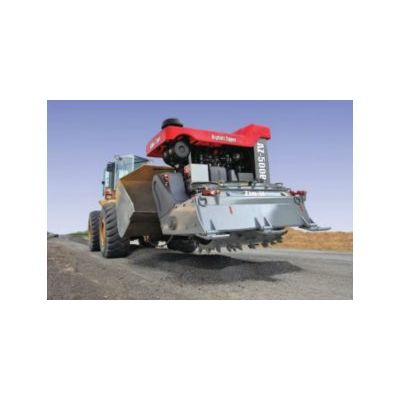

Asphalt Zipper -Ā Model AZ-500B - Loader Attachment
The AZ-500B harnesses the power and productivity of much larger reclaimers into a portable and affordable attachment, turning your loader into a high-powered reclamation machine. Powered by either John Deere or Cummins (Tier 3) Turbo Diesel engines, the AZ-500B will pulverize up to 12-inch thick asphalt in a single pass. Asphalt Zipper® mounting options make it easy to connect to the widest possible range of loaders. Easy to read and access controls and gauges along with active-hydraulic depth control and top hatch make it simple to use and maintain. Computer engineered cutter heads with replaceable bullet-head carbide tipped cutting teeth produce pulverized material with exceptional gradation that can be reused as road-base or backfill. Street patches, full road repairs, base stabilization and opening utility trenches in asphalt are just a few of its many uses. The AZ-500B transports easily on its own custom trailer behind a one-ton pickup truck.
- Other cut widths available.
- Based on average asphalt thickness up to 5-6" thick. Assumes max horsepower. Actual results may vary depending on asphalt hardness, temperature, oil content, age, desired grind, etc.
- Weight with standard options equipped, without trailer and without fuel.
- Specifications subject to change without notice.
- Max Cut Width* : 48" 1219 mm
- Max Cut Depth : 12" 305 mm
- Max Cut Speed** :6000 ft²/hr, 557 m²/hr
- Engine :John Deere or Cummins
- Horsepower :99 / 140 / 173 / 203 / 260
- Weight***:8250 lb, 3742 kg
- Host Vehicle :Loader 3 yd
