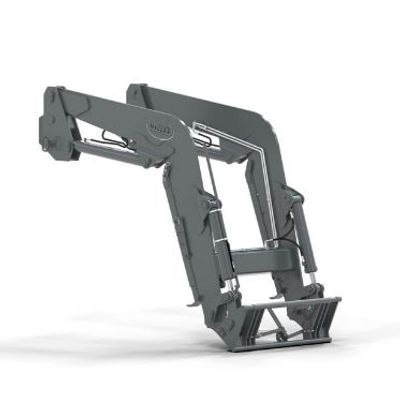

Miller - Model M 25 -Loaders
FromMiller Loaders
Mast mount, designed for machines with limited space between the front tires, fuel tanks and exhaust systems. Machines with longer hoods are best accommodated with this loader. Requires newer machines (approximately 1996 and newer) which provide mounting to the tractors frame/castings.
Most popular related searches
Tractor Info / Requirements
- Horsepower 80 - 190
- Wheelbase 93 - 108
- Operating Weight Up to 17,000
Loader Specifications & Capabilities
- Loader Weight without Bucket or Mounts (lb) 2,130
- Miller loader Specifications for m25
Basic Information
- [A] - Max Lift height (in) 14`-0" (168)
- [B] - Max height under level bucket (in) 13`-0" (156)
- [C] - Clearance with bucket dumped 45 deg (in) 10`-8" (128)
- [D] - Reach at Max Lift and 45 deg dump (in) 24"
- [E] - Max dump angle (deg) 52
- [F] - Reach on Ground with 35" deep bucket (in) 100
- [G] - Bucket Rollback angle (deg) 37
- [H] - Dig Depth (in) 6
- Max Breakaway Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 6,100
- Full Height Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin (lbs) 5,500
- Max Bucket Rollback Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 10,400
