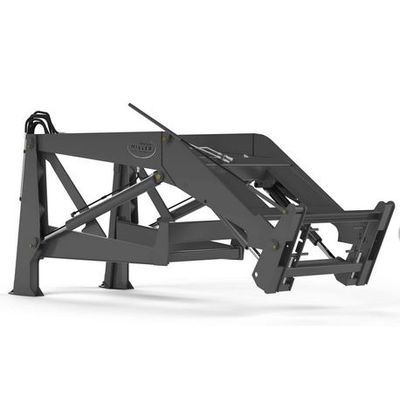

Miller - Model P 12 -Loaders

Tractor Info / Requirements

• Horsepower 2WD
• Wheelbase 2WD
• Operating Weight 2WD

Loader Specifications & Capabilities

• Loader Weight without Bucket or Mounts (lb) 2,130
• Miller loader Specifications for p12

Basic Information

• [A] - Max Lift height (in) 12`-1" (145)
• [B] - Max height under level bucket (in) 11`-2" (134)
• [C] - Clearance with bucket dumped 45 deg (in)  9`-8" (116)
• [D] - Reach at Max Lift and 45 deg dump (in) 36"
• [E] - Max dump angle (deg) 35
• [F] - Reach on Ground with 35" deep bucket (in) 84
• [G] - Bucket Rollback angle (deg) 34
• [H] - Dig Depth (in) 5
• Max Breakaway Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 8,000
• Full Height Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin (lbs) 4,000
• Max Bucket Rollback Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 11,000
