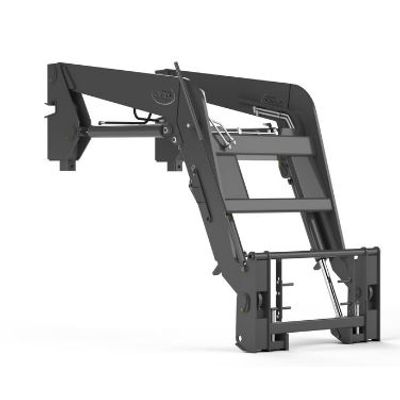

Miller - Model GP 25 -Loaders

Tractor Info / Requirements

• Horsepower 80 - 175
• Wheelbase 93 - 108
• Operating Weight Up to 15,000

Loader Specifications & Capabilities

• Loader Weight without Bucket or Mounts (lb) 1,790
• Miller loader Specifications for gp25

Basic Information

• [A] - Max Lift height (in) 12`-11" (155)
• [B] - Max height under level bucket (in) 11`-10" (142)
• [C] - Clearance with bucket dumped 45 deg (in)  10`-2" (124)
• [D] - Reach at Max Lift and 45 deg dump (in) 28"
• [E] - Max dump angle (deg) 44
• [F] - Reach on Ground with 35" deep bucket (in) 90
• [G] - Bucket Rollback angle (deg) 32
• [H] - Dig Depth (in) 6
• Max Breakaway Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 5,900
• Full Height Lift Force with load 31.5" (800mm) ahead of Bucket Pivot Pin (lbs) 4,900
• Max Bucket Rollback Force with load 31.5" (800mm) ahead of Bucket Pivot Pin 8,000
