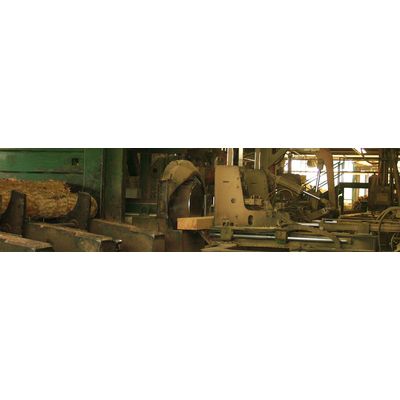

USNR - Log Boss Carriage
The Log Boss Carriage is made of superior construction that stands up to harsh sawmill environments. Log Boss uses servo-controlled linear positioners for precise knee alignment, and features straight line positive dogging to eliminate potential mis-cuts. Two to five standard knees slide on chromed round and flat-ways. It is an ideal candidate for large diameter logs of 42" to 60" (107 cm to 152 cm) in diameter. Log Boss is an industry-tested product known for being robust and reliable. Coupled with our state of the art 3D optimization systems, Log Boss achieves the industry`s best recovery rate.
Excellent Value
We are your single source supplier for complete carriage systems. We design, manufacture and service all mechanical parts, electrical systems, pneumatic and hydraulic systems, scanning and optimization systems, and supplies original replacement parts. We do it all.
Frame
- Cast iron plow type flat wheel scrapers
- Shock absorbing mounting pads for trucks and blocks
- Rubber bumper pads mounted on end of frame
- Wheel materials: Vee is T-1 with steel side plates; Flat is either through hardened cast or polymer with steel side plates
- Wheel and bearing assemblies use Timken cup and cone bearings, cover plate, and non-adjustable grease zerk
- Steel plumbed lube line drips oil to vee wheels at each end of carriage
Blocks
- Made of heavy duty angle with gussets
- Chromed reversible wear bars for blocks
Knees
- Plate thicknesses; side plates at 3/4”, front plate at 8”(overlapping sideplates allow welding on both sides), bottom plate 1” milled vibratory stress relieved
- Delrin wearstrip on bottom of knee, grooved for better oil distribution
- Three lubricating points on each side of knee, steel plumbed lubrication lines have Lincoln injectors and indicator pins
- Hydraulic cylinder attaches to knee using a compression yoke clevis with zero mechanical backlash
Dog Assemblies
- Upper board dog holder is made of heavy duty fabricated steel
- Lower board dog holder is attached to cylinder with bumper
- Chromed dog bar
- Upper board dog bits are made of high strength cast alloy hardened to 360 Brinell hardness throughout - dogs are removeable from front
- Bottom bit fabricated from high strength low alloy steel (1040)
- Dog bits have maximum 1/32” clearance from face plates for minimum side travel
- Dog bit spring is a special tension type Log Boss design
- All sliding, pivoting or rotating points are lubricated and bronze bused where necessary
- Available in horizontal and 17-degree slant configurations
- High-strength tubular steel construction
- Knees made from ¾” thick steel plate
- Three standard knees slide on chromed round- and flat-ways
- Three sets of hardened steel wheels are standard; additional wheels optional
- Optional thermoplastic insert wheels
- Optional cant flipper or cant kicker
- Optional additional knees
