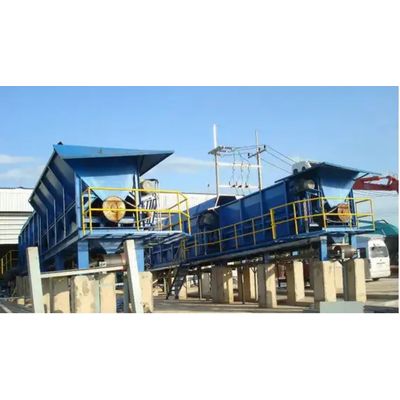

Qingdao PALET - Log Debarker Machine

The log debarker machine is suitable for large, medium and small paper plant, pulp plant, wood chip plant, wood processing plants, wood pellet plant, forest mills, wood storage yards, wood-based panel factories (such as plywood plant, medium density fiberboard plant, etc.). The log debark machine is a unique force produced by the rotor with peeling teeth.

1. Log debarkermachine adopts open silo, which can feed from one end and discharge from the other end of the assembly line operation, which overcomes the shortcomings of the existing drum type debarkermachine power failure feed, discharge, type working mode, and high working efficiency.
2. Because of the impact of tooth teeth on the wood segment, the wood debarkermachine not only makes the circulation movement of the wood segment in the housing, but also rotates around itself, so the efficiency of the peeling machine is high, and the difficult tree species such as eucalyptus and poplar have better peeling effect, and the than 95%.
3. Log debarkermachine has strong adaptability to wood, it can peel wood segments with different tree species, diameter, length and shape of wood peeling machine manufacturer. because the wood segments do rotary motion and irregular runout, the concave part of curved wood segments can also be in good contact with peeling teeth. Therefore, the stripping static rate of bending logs is much higher than that of other roller types.
4. Because the huge housing is fixed, so the energy consumption is small, the failure rate is low, the maintenance work is small, the vibration and noise is much lower than the drum debarkermachine, the log debarkermachine can be produced on the ground, even without the need to install the base, easy to use

• Mainframe Power :7.5-11/11-15 KW-6
• Auxiliary Power :3 KW Inner Bark Conveyor
• Feed form: optional loader or transport platform side feed
• Discharge form: open continuous discharge
• Electronic control form: electronic control cabinet switch start control
• Material slot size :6000/7000*1500*900 mm.
• Timber length :1000-2000 mm
• Feed bend: maximum not exceeding 5-8%
• Diameter range :50-300 mm too long material can be cut within 2.5 meters before processing
• Height of tree joints: maximum not exceeding 100 mm
• Netting rate :85-90% and above
•  Yield :8-10/12 m³ per hour( different material diameter)
• Size :7500/8500*1800*1900 mm.

• Mainframe power :15-18.5 KW-6
• Auxiliary power :4 KW inner bark conveyor
• Feed form: optional loader or transport platform side feed
•  Discharge form: open continuous discharge
• Electronic control form: electronic control cabinet switch start control
• Material slot size :8000/9000*1600*1000 mm.
•  Timber length :1000-2500 mm
•  Feed bend: maximum not exceeding 5-8%
• Diameter range :50-300 mm over length material can be cut within 3 meters before processing
• Height of tree joints: maximum not exceeding 100 mm
• netting rate :85-90% and above
• Yield:12-15 m³/h( Material diameter specifications vary)
• Size :9500/10500*2000*2100 mm.
• Equipment total weight :5800/6800 KG

• Mainframe Power :22-30 KW-6
• Auxiliary Power :5.5 KW Inside Bark Conveyor
•  Feed form: optional loader or transport platform side feed and discharge form: open continuous discharge
• Electronic control form: electronic control cabinet switch start control
• Material slot size :10000*1600*1000 mm.
• Timber length :1000-3500 mm
•  Feed bend: maximum not exceeding 5-8%
• Diameter range :50-300 mm too long material can be cut within 4 meters before processing
• Height of tree joints: maximum not exceeding 100 mm
• Netting rate :85-90% and above
• Yield :15-20 m³/h( Material diameter specifications vary)
•  Size :11500*2000*2100 mm.
• Equipment total weight :7600/8800 KG
