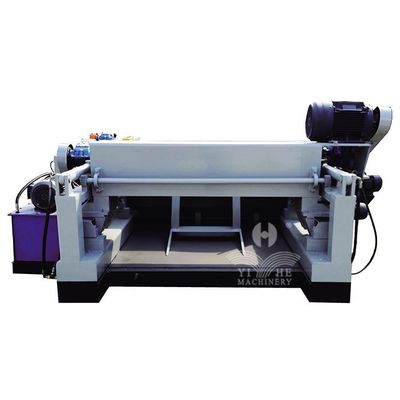

Yihe Machinery - Model 4FT Normal - Log Debarking Machine
The Log Debarking Machine is essential in veneer production as it ensures the removal of bark from wood logs, which could otherwise cause damage during the veneer rotary cutting process. The machine is designed with a double roller system that moves forwards and backwards, facilitating efficient loading and unloading, thus speeding up the bark removal operation. It features an adjustable hydraulic feeding system to accommodate different wood densities, ensuring consistent performance. The machine's design emphasizes stable operation and ease of use. Customizable in working width and opening stroke, it can be tailored to meet specific requirements. The machine handles wood diameters of 60-550mm and lengths of 900-1300mm. Key specifications include a blade length of 1400mm, veneer peeling thickness of 1-3mm, and a linear speed of 51 meters per minute. It is powered by a total of 24kW, with individual motors for double rollers (11kW), single roller (7.5kW), and hydraulic station (5.5kW). The overall dimensions are 4500*2100*1400mm, and it weighs 3500kg.If the wood log is rotary peeled directly without wood debarking, the bark fiber block blade seam easily. And there is the metal and soil sand in the bark, these things easily damage the knife blade during veneer rotary cutting work, so the wood bark must be removed before rotary veneer peeling. This machine is main equipment to remove wood bark and before veneer peeling work.
- The double roller comes forward and backward. It is convenient for wood uploading and wood unloading, which can improve the speed of bark removing work.
- Reasonable machine design, machine runs stably,easy operation.
- Adopting hydraulic feeding system, the pressure can be adjusted to suit different density of wood.
- The machine's working width and openning stroke can be customized according to client's requirement.
Model Number: YDB/4L
Wood diameter: Φ60-Φ550mm
Wood length: 900-1300mm
Blade length: 1400mm
Thickness of veneer peeler: 1-3mm
Linear speed of host machine: 51m/min
Double roller diameter: Φ200mm
Single roller diameter: Φ150mm
Double roller motor power: 11kw
Single roller motor power: 7.5kw
Hydraulic station motor power: 5.5kw
Total power: 24kw
Overall size: 4500*2100*1400mm
Machine's weight: 3500kg
