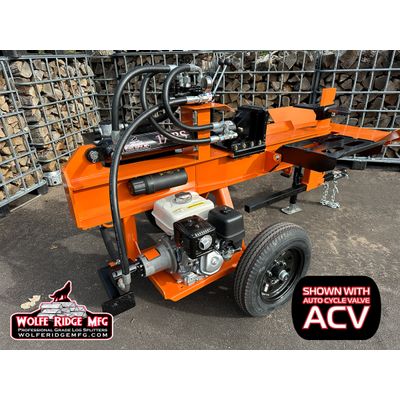

Wolfe Ridge - Model 17 RS - Log Splitter
Wolfe Ridge MFG provides a comprehensive range of horizontal log splitters renowned for their reliability and efficiency. These machines offer advanced splitting mechanisms suitable for both personal and commercial use. Each model is designed to withstand heavy use with robust construction and advanced engineering, featuring models like the 17 RS, 22 RS, and 28 Pro Log Splitters, extending to compact commercial and high output variants like 28C & 35C, 28 HO & 35 HO, and the high-capacity 28 SHO & 35 SHO. For industrial applications, the company offers the 28 HDI & 35 HDI Heavy Duty Industrial Log Splitters and the innovative 35 SHO / HDI BW Box Wedge Log Splitter. Prices range from $5,795 to $16,750, making these splitters a diverse lineup catering to varying needs of durability and performance. Wolfe Ridge MFG’s commitment to quality ensures these tools perform reliably in demanding forestry and wood processing operations.The 17 RS is a commercial quality splitter that was originally intended for resplitting larger pieces of firewood, but it is also a great option for every day firewood production. Powered by a Honda GX270 engine and 16 gallon per minute hydraulic pump, the 17 RS is fuel efficient AND fast. Built to last, made in the USA, all Wolfe Ridge machines are produced with top-quality materials to ensure reliable performance, day in and day out.
The 17 RS frame is designed, cut, and welded in house. It has an 8 inch beam and a 12 inch tall AR400 main wedge. With a 17 ton cylinder and 16 gallon per minute hydraulic pump, the 17 RS has a fast cycle time of 6 seconds! This means less time and effort spent on splitting wood, and more time for everything else. The 17 RS log splitter from Wolfe Ridge is an affordable commercial grade log splitter with some great basic features.
- 17-ton splitting force
- Fast 6 second cycle time
- Compact design for easy transport and storage
- Powerful Honda engine for consistent performance
- Easy-to-use controls – Made in USA Prince hydraulic valves
- Available with a hydraulic log lift OR auto cycle valve*
- MANUAL bolt – on 4 way wedge with multiple height positions
- Sandblasted and powder coated for a tough, long lasting appearance
- Red, Orange, Gray, or Blue as standard color options
- Custom colors with any RAL color code for added fee
- 1 year warranty on machine – 3 year on engine
Whether you’re splitting wood for just yourself, or starting a firewood production business, the 17 RS is a great choice for a fast, basic, commercial grade log splitter. Available with a hydraulic log lift OR auto cycle valve.* Invest in a high-quality, made in USA log splitter that delivers exceptional results every time.
- Honda GX270 9HP engine
- Recoil pull start
- 16 GPM hydraulic pump
- 15 gallon hydraulic tank with cartridge return filter
- Prince auto cycle valve OR hydraulic log lift included*
- Bronze self lube slides on push block
- In-house welded & fabricated splitter beam
- 31 inch beam height
- 24 inch stroke length
- Manual bolt-on wedge height adjustment
- Removable 4 way wedge included (6 way optional)
- Removable drawbar with 2 inch hitch ball coupler
- 45 MPH recommended max towing speed
- 4.8″ x 12″ rims, 21” radial tires, Dexter hubs and spindles
- Fits into pick up truck bed or small trailer, 4′ x 8′ overall size
- Weight: 1000 LB.
* Available with auto cycle valve OR log lift. If you would like a machine with BOTH these features, please look into our 28 Pro or higher level models. *
